Question: Figure P 5 . 3 2 . 5 . 3 2 . Determine the shear center S of the section shown in Fig. P 5

Figure P5.32.

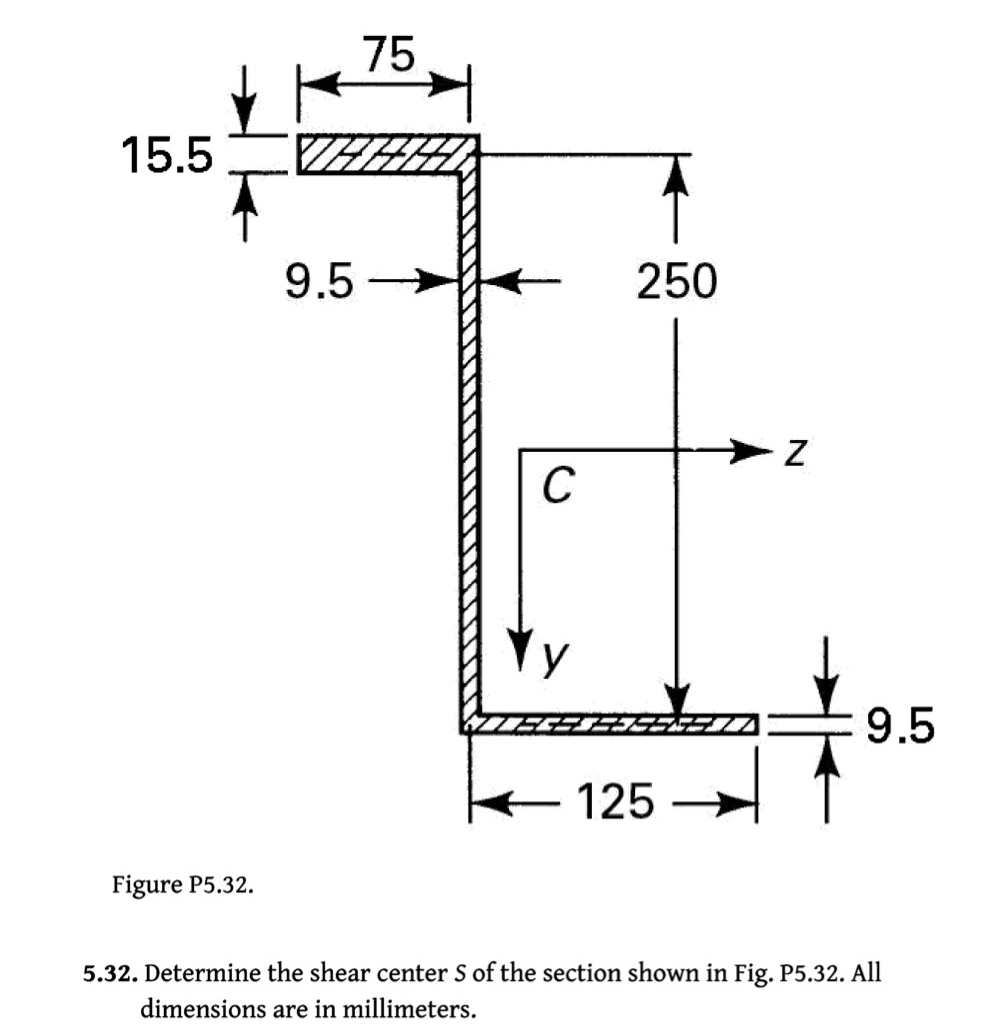

5.32. Determine the shear center S of the section shown in Fig. P5.32. All dimensions are in millimeters. Please also sketch the fbd and explain
Figure P 5 . 3 2 . 5 . 3 2 . Determine the shear

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
