Find reactions at supports $A,C,$ and $E.$

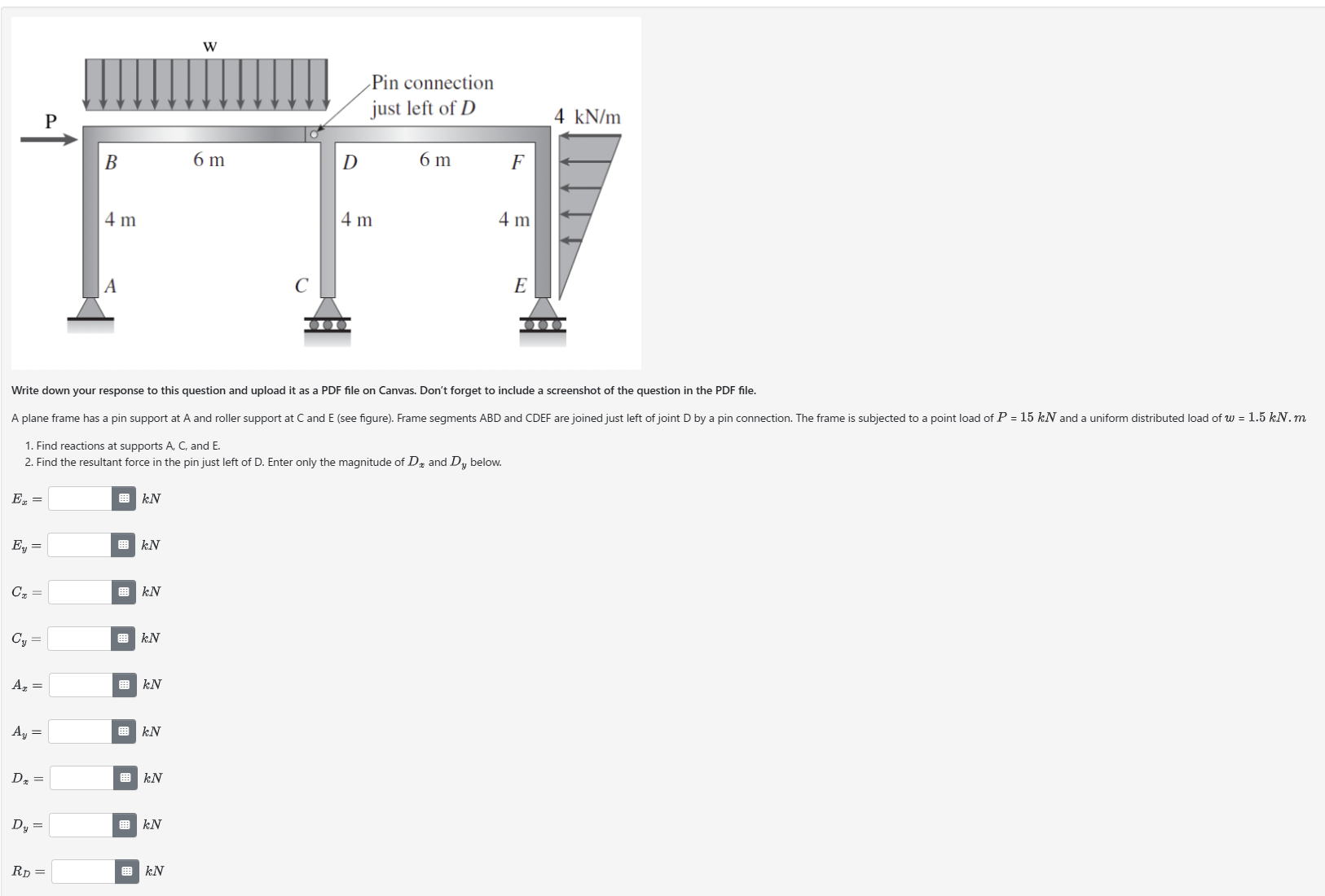

A plane frame has a pin support at A and roller support at $C$ and $E($see figure$).$ Frame segments ABD and CDEF are joined just left of joint $D$ by a pin connection. The

frame is subjected to a point load of $P=15kN$ and a uniform distributed load of $w=1\mathrm{.}5kN.m$

Find reactions at supports $A,C$ and $E.$

Find the resultant force in the pin just left of $D.$ Enter only the magnitude of $D_x$ and $D_y$ below. A plane frame has a pin support at A and roller support at $C$ and $E($see figure$).$ Frame segments ABD and CDEF are joined just left of joint $D$ by a pin connection. The frame is subjected to a point load of $P=15kN$ and a uniform distributed load of $w=1\mathrm{.}5kN.m$

Find reactions at supports $A,C,$ and $E.$

Find the resultant force in the pin just left of $D.$ Enter only the magnitude of $D_x$ and $D_y$ below.

$E_x=,kN$

$E_y=,kN$

$C_x=,kN$

$C_y=,kN$

$A_x=kN$

$A_y=kN$

$D_x=,kN$

$D_y=kN$

$R_D=,kN$

Find the resultant force in the pin just left of D $.$ Enter only the magnitude of $D_x$ and $D_y$ below.
