Question: Find the equivalent capacitance between points A and B for the group of capacitors shown in ( Figure 1 ) . Suppose C 1 =

Find the equivalent capacitance between points A and B for the group of capacitors shown in (Figure 1). Suppose C1=20F,C2=9.3F, and C3=18F.
Express your answer using two significant figures.
View Available Hint(s)

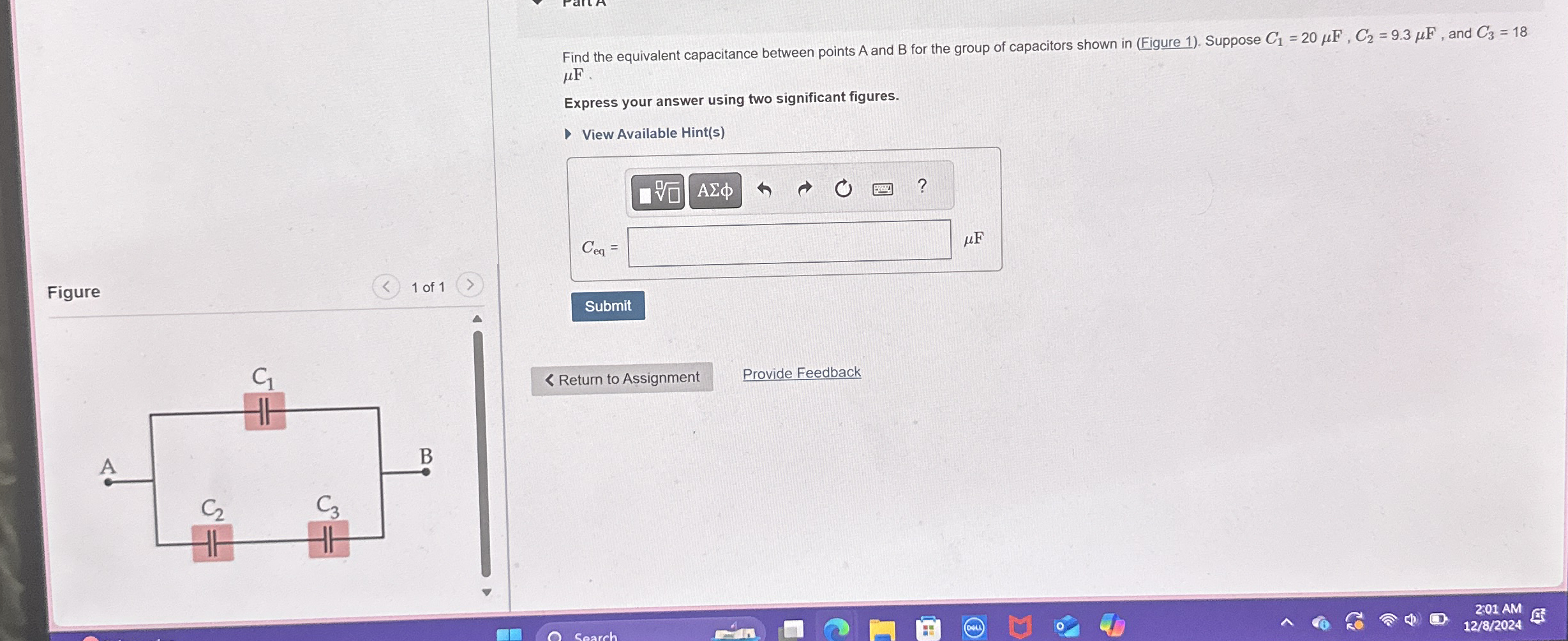

Figure 1 of 1
Provide Feedback
Find the equivalent capacitance between points A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
