Question: Find the internal torque T C B ( x ) if the support at A is assumed to be clockwise. a . T C B

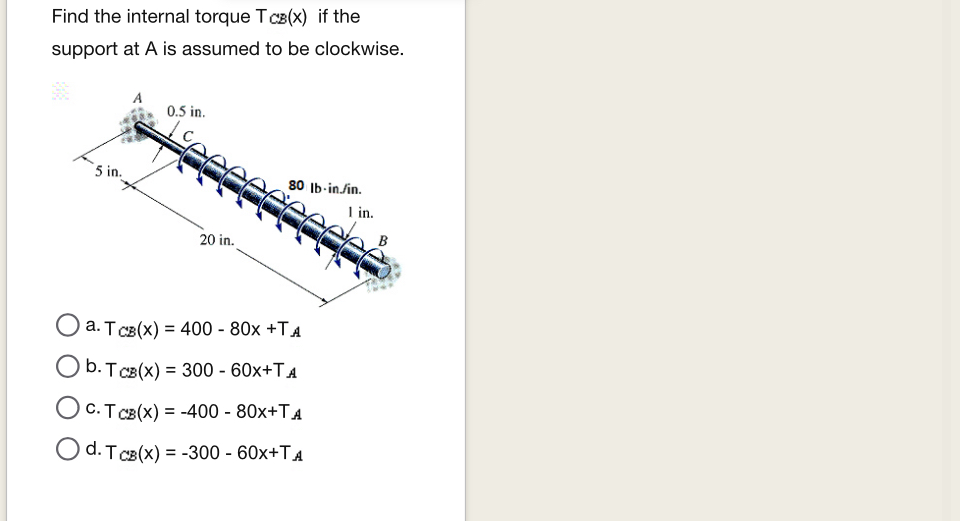

Find the internal torque TCB(x) if the support at A is assumed to be clockwise.
a.TCB(x)=400-80x+TA
b.TCB(x)=300-60x+TA
c.TCB(x)=-400-80x+TA
d.TCB(x)=-300-60x+TA
Find the internal torque T C B ( x ) if the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
