Question: Find the transfer function, G ( s ) = x s ? E a ( s ) , for the system shown in the given

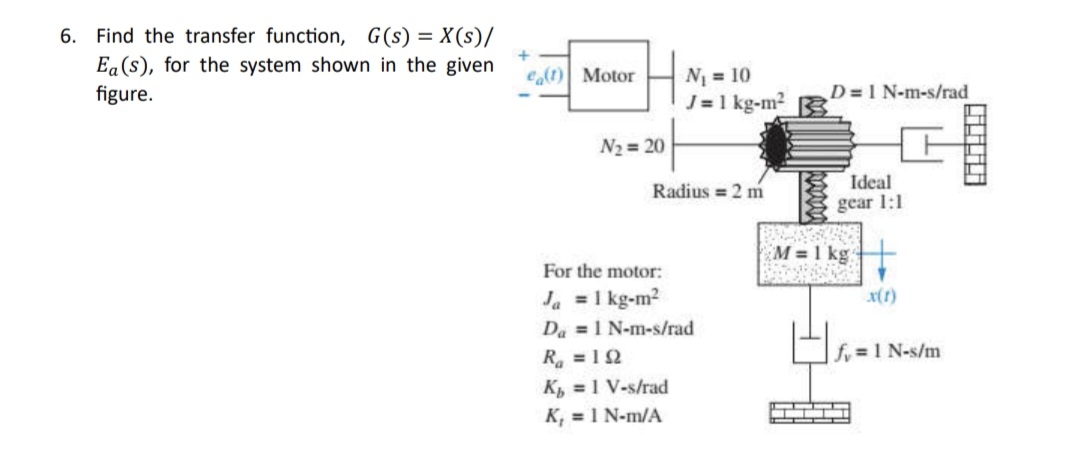

Find the transfer function, G(s)=xs?Ea(s), for the system shown in the given figure.
Find the transfer function, G ( s ) = x s ? E a (

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Electrical Engineering Questions!

Q:

Find the transfer function, G(s) = X 3 (s)/F(s), for the translational mechanical system shown in Figure P2.13. 2 N-s/m x3(1) 2 N-s/m x(1) 6 N/m 4 kg 4 kg 6 N/m 2 N-s/m 0000 4 kg Frictionless FIGURE...
