Question: For all the questions given below: Solve for the support reactions and construct shear force ( V ) and bending moment ( M ) diagrams.

For all the questions given below: Solve for the support reactions and construct shear force (V)
and bending moment (M) diagrams. Each question is 20 pts.
Please print out this document and solve each question in the designated area.

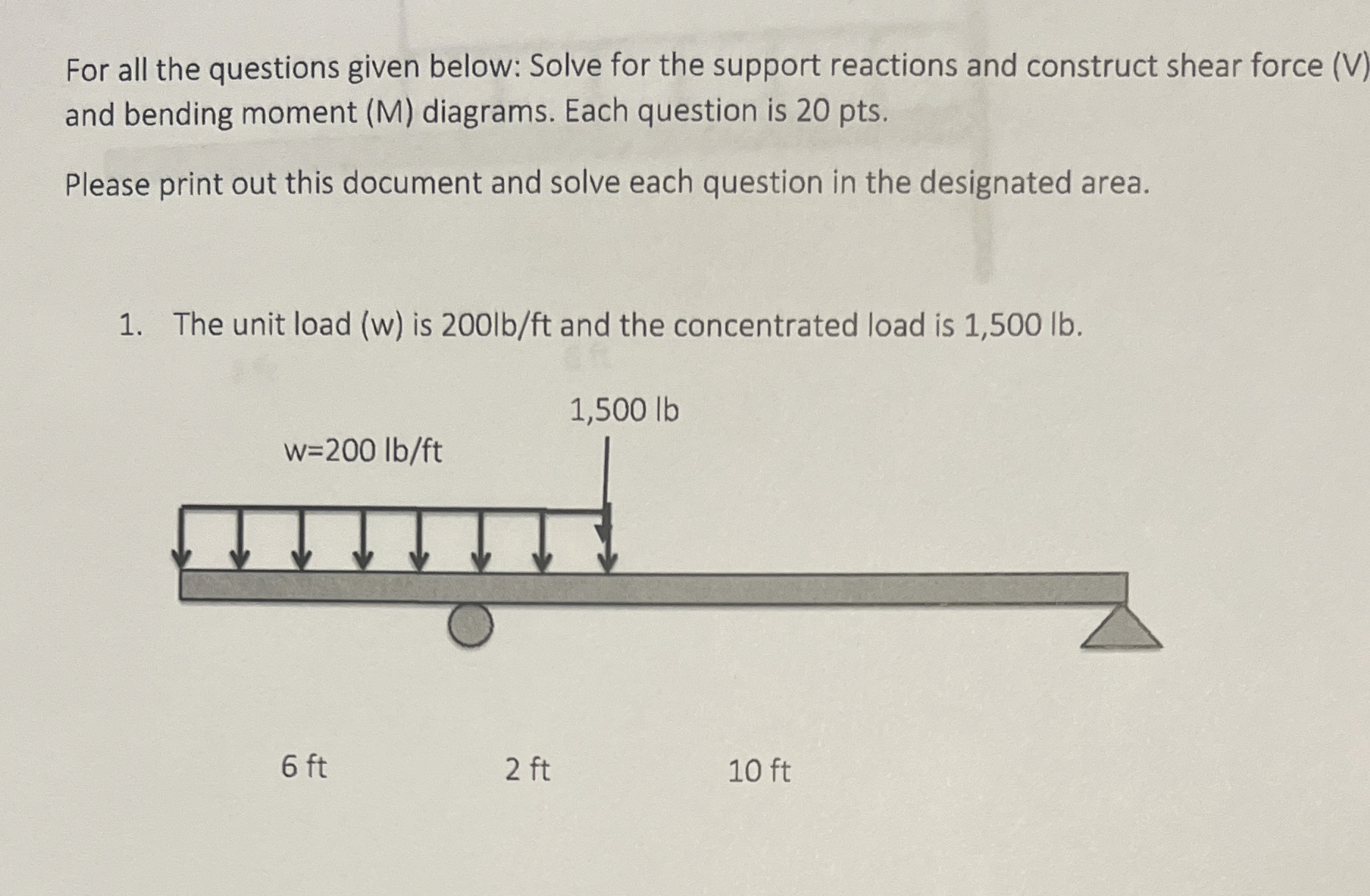

The unit load ( w ) is 200lbft and the concentrated load is 1,500lb.
For all the questions given below: Solve for the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
