For an N x N array multiplier: (a) List all module bit-slices you will need for your design.

(b) For each bit slice, show the gate-level design.

(c) Show the block level design of your register. NOTE: Use Flip-flops for your registers. Do not use Latches.

(d) Show an overall block-level diagram of your design. Briefly, explain how each of the above requirements will be met by your design.

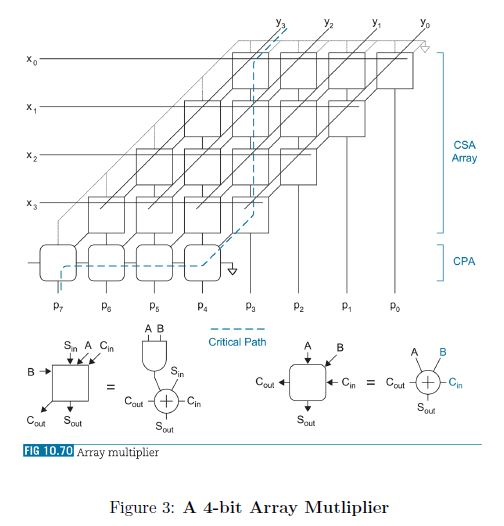

CSA Array CPA P1 A B Critical Path A B Sin CotCn Cou Sout ut out FIG 10.70 Array multiplier Figure 3: A 4-bit Array Mutliplier
