Question: For beams / frame shown below, draw shear and bending diagram and sketch the deflected shape of the structure. Consider the given figure. Given: P

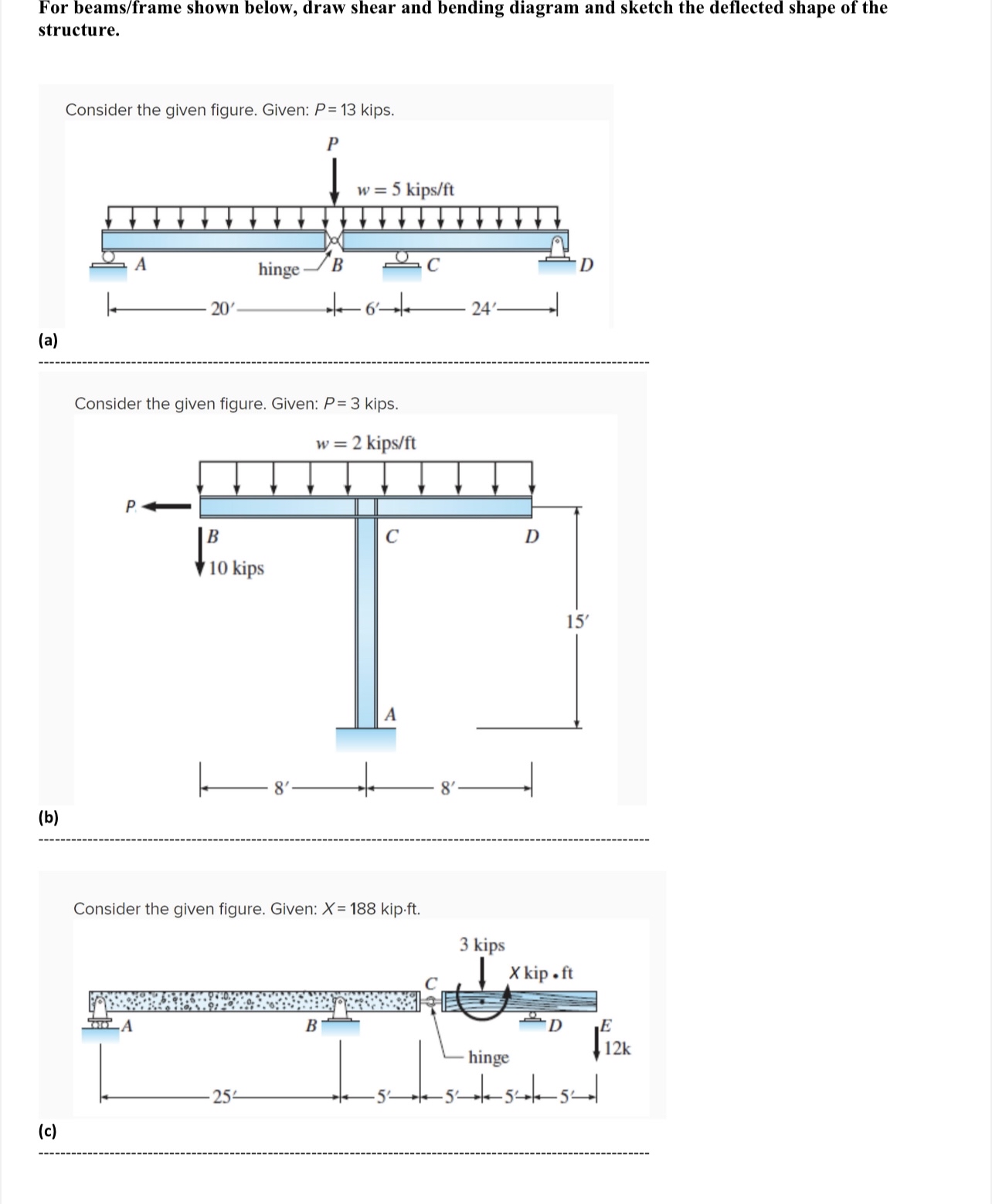

For beams/frame shown below, draw shear and bending diagram and sketch the deflected shape of the structure.
Consider the given figure. Given: P=13 kips.
(a)
Consider the given figure. Given: P=3 kips.
(b)
Consider the aiven fiaure. Given: x=188kip*ft.
(c.
For beams / frame shown below, draw shear and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
