Question: For each of the following program segments, execute the program one instruction at a time. At the end of each instruction execution, indicate any changes

For each of the following program segments, execute the program one instruction at a time. At the end of each instruction execution, indicate any changes in registers, condition flags, and/or memory locations (if there is any). Note that the result of any instruction may be an operand for succeeding instructions.

For each of the following program segments, execute the program one instruction

at a time. At the end of each instruction execution, indicate any

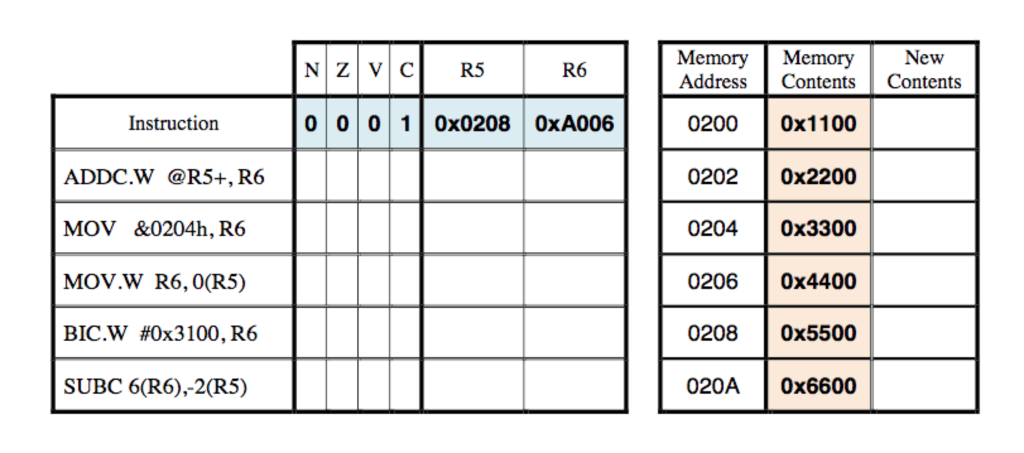

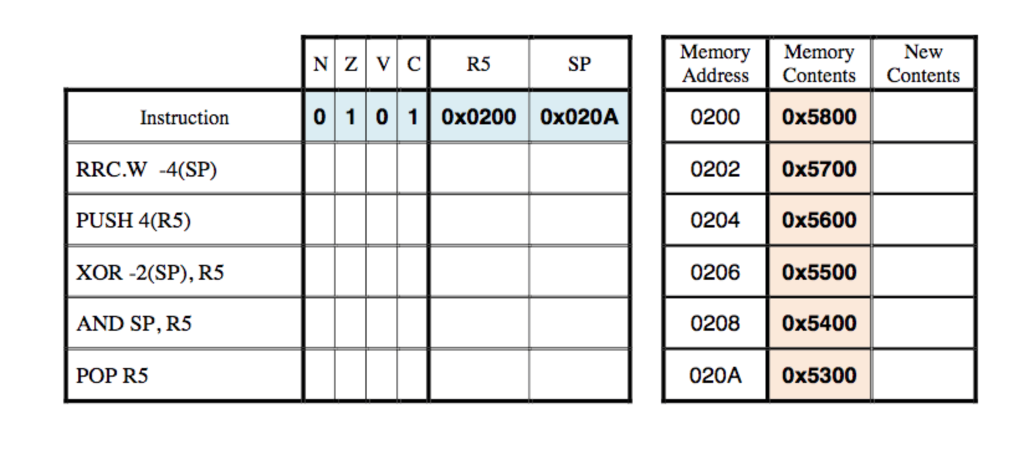

Memory MemoryNew R6 Address Contents Contents 0200 0x1100 0202 0x2200 0204 0x3300 0206 0x4400 0208 ox5500 020Aox6600 Instruction 00 0 10x0208 0xA006 ADDC.W @R5+, R6 MOV &0204h, R6 MOV.W R6, 0(R5) BIC.W #0x3100,R6 SUBC 6(R6),-2(R5)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
