Question: For Frame F 3 shown below, use the Force Method to compute the support reaction R D . Assume that the frame loading Table 1

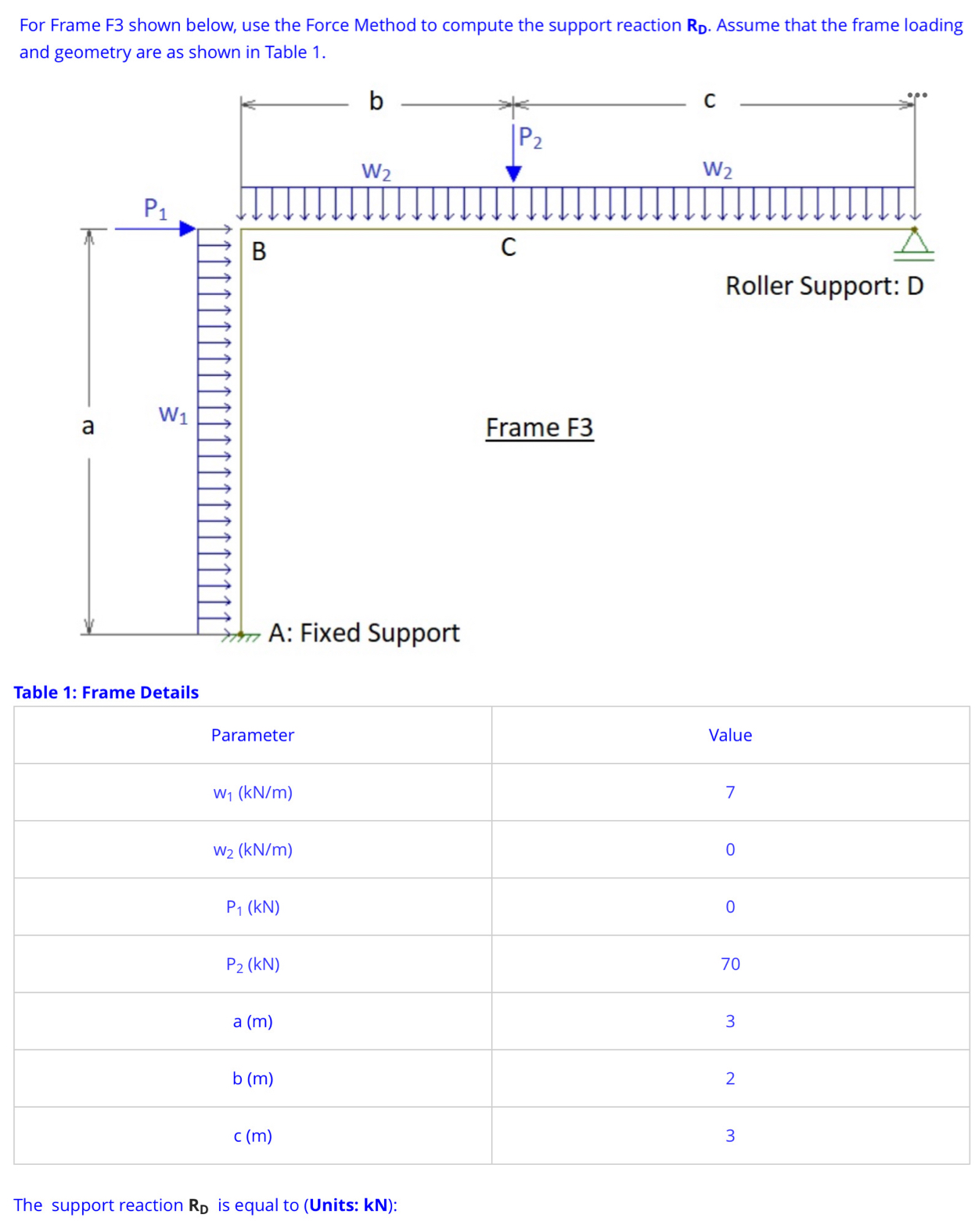

For Frame F3 shown below, use the Force Method to compute the support reaction RD. Assume that the frame loading
Table 1: Frame Details
\table[[Parameter,Value],[w1(kNm),7],[w2(kNm),0],[P1(kN),0],[P2(kN),70],[a(m),3],[b(m),2],[c(m),3]]
The support reaction RD is equal to (Units: kN):
For Frame F 3 shown below, use the Force Method

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
