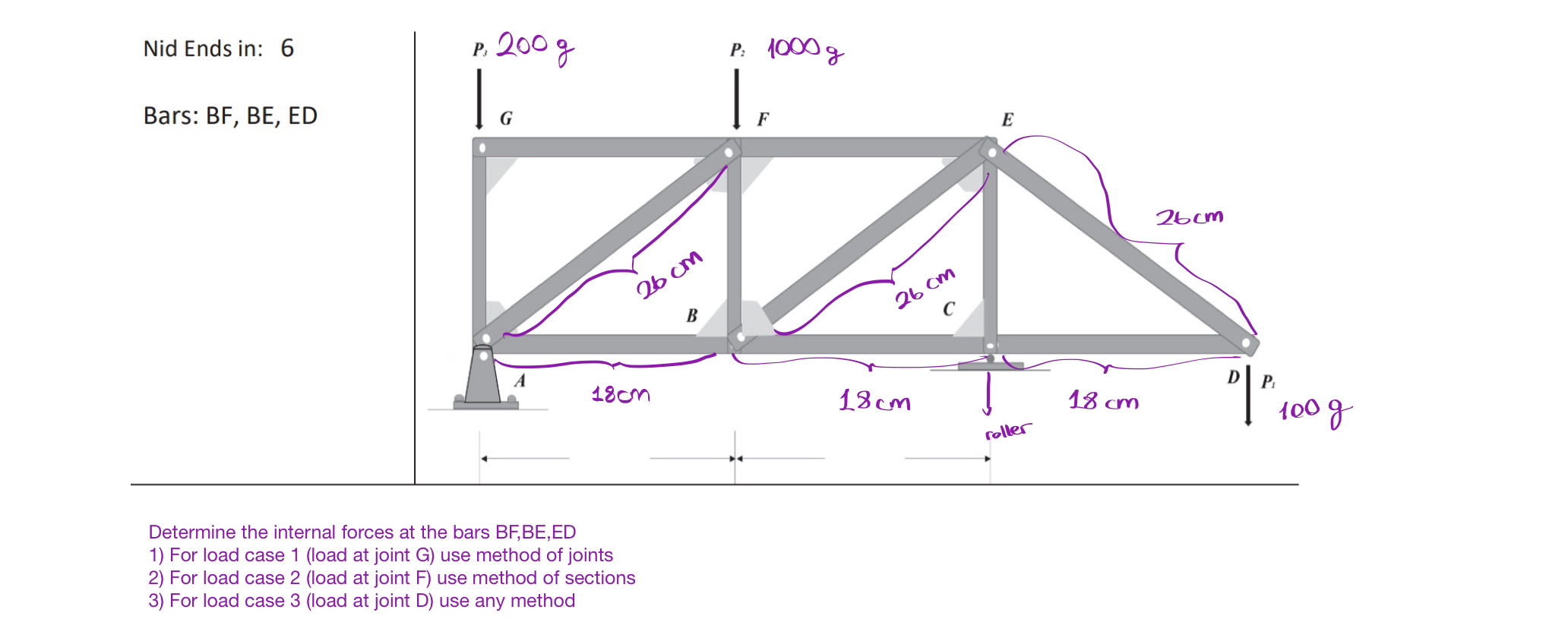

Question: Determine the internal forces at the bars BF , BE , ED For load case 1 ( load at joint G ) use method of

Determine the internal forces at the bars BF, BE, ED
For load case 1(load at joint G) use method of joints
For load case 2(load at joint F) use method of sections
For load case 3(load at joint D) use any method
Determine the internal forces at the bars BF , BE

Step by Step Solution

There are 3 Steps involved in it
