Question: For the activity information provided below, draw both the Activity-On-Node (AON) and Activity-On-Arrow (AOA) networks. Predecessors Duration Activity A 20 B 20 10 D A

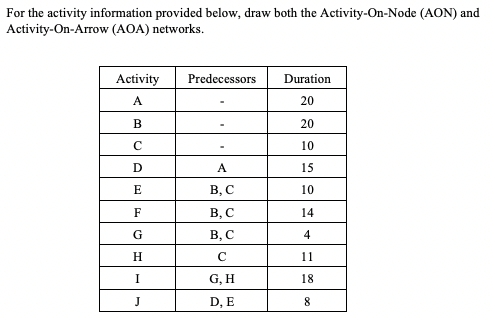

For the activity information provided below, draw

For the activity information provided below, draw both the Activity-On-Node (AON) and Activity-On-Arrow (AOA) networks. Predecessors Duration Activity A 20 B 20 10 D A 15 E B, C 10 F 14 B,C B,C G 4 H 11 I 18 G, H DE J 8

Step by Step Solution

There are 3 Steps involved in it
