Question: For the assembly shown below: a . Identify the reaction forces at point A b . Draw the free body diagram with all forces and

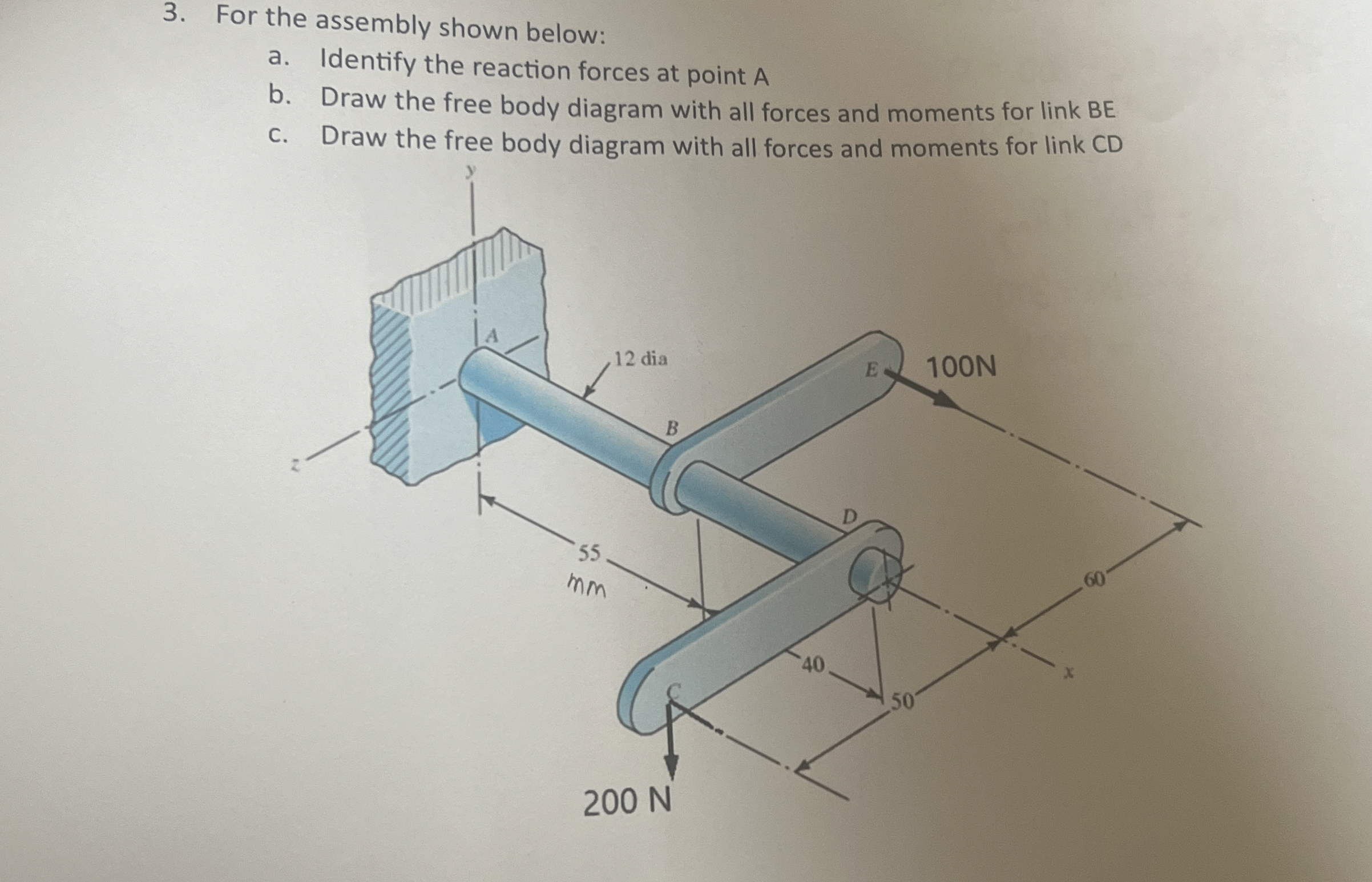

For the assembly shown below:
a. Identify the reaction forces at point A
b. Draw the free body diagram with all forces and moments for link BE
c. Draw the free body diagram with all forces and moments for link CD
For the assembly shown below: a . Identify the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
