Question: For the beam and loading shown, consider section n - n . Given: P = 1 0 kips. In part one, the largest hearing stress

For the beam and loading shown, consider section n-n. Given: P=10kips. In part one, the largest hearing stress is 5.920 KSI. So in part two,
determine the shearing stress at point a in ksi?

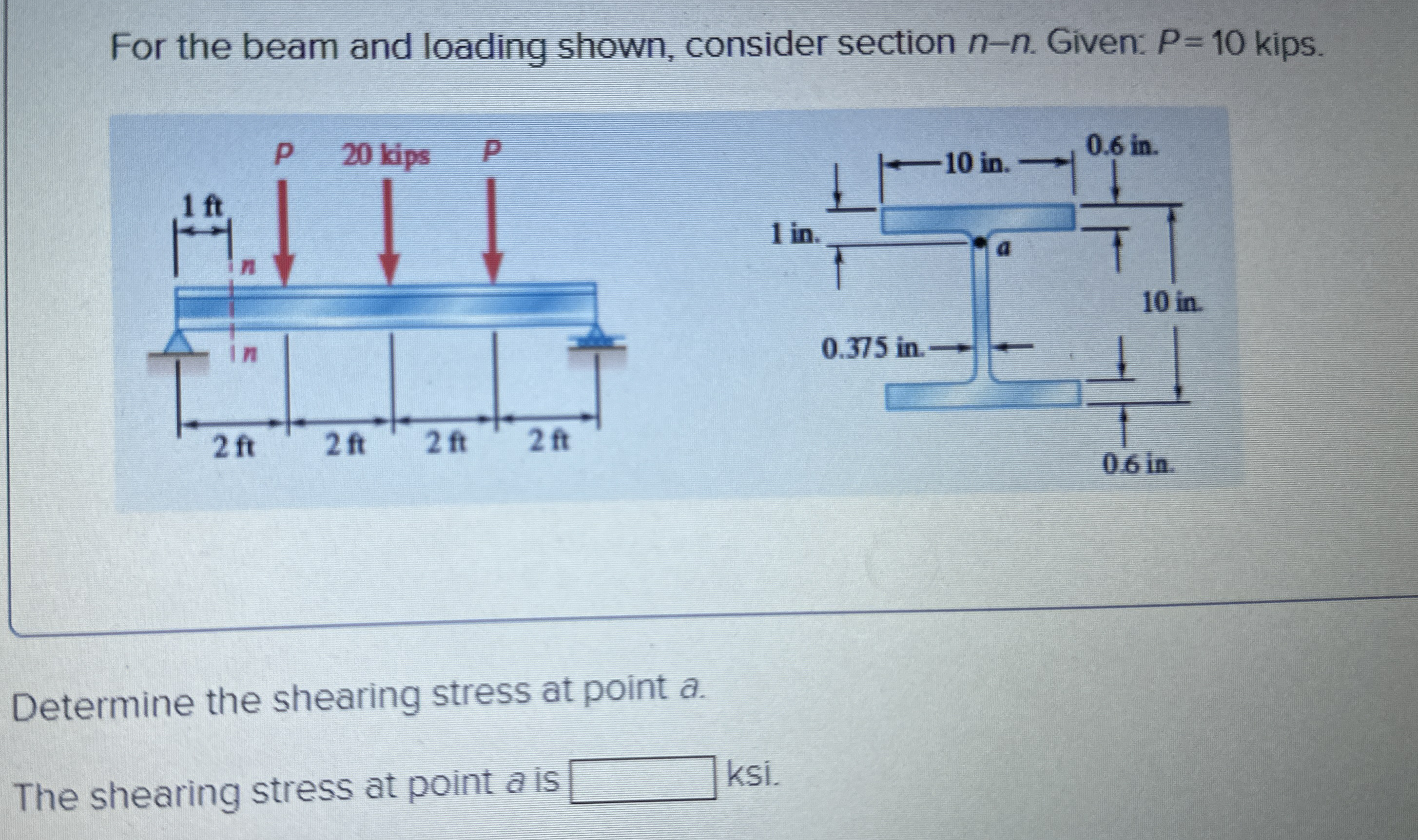

For the beam and loading shown, consider section

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
