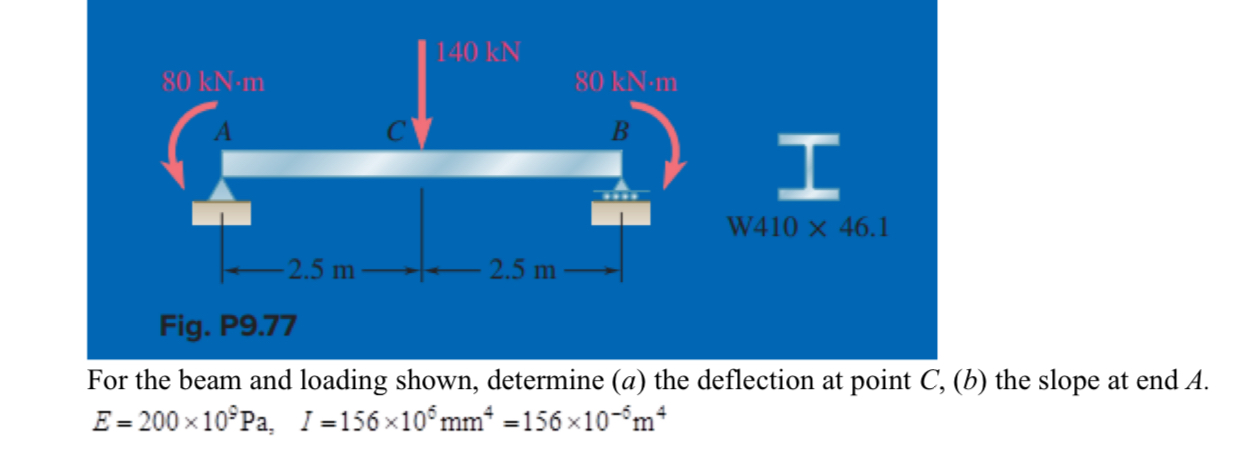

Question: For the beam and loading shown, determine ( a ) the deflection at point C , ( b ) the slope at end A .

For the beam and loading shown, determine (a) the deflection at point C,(b) the slope at end A.
E=200109Pa,I=156106mm4=15610-6m4
For the beam and loading shown, determine ( a )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Problem 2 ( 9 . 7 1 in your textbook ) For the beam and loading shown, determine ( a ) the deflection at point C , ( b ) the slope at end A i Note: Use the method of superposition ( and Appendix F in...

Q:

Use the method of superposition to solve the following problems and assume that the flexural rigidity EI of each beam is constant. 1 5 . 2 7 through 1 5 . 3 0 For the beam and loading shown,...

Q:

PROBLEM 9 . 7 0 For the beam and loading shown, determine ( a ) the deflection at point C , , ( b ) the slope at end A .

Q:

9 . 6 7 and 9 . 6 8 For the beam and loading shown, determine ( a ) the deflection it point C , ( b ) the slope at end A . An . 9 . 6 7 ( a ) 8 P L 3 2 4 3 EIdarr. ( b ) 1 9 P L 2 1 6 2 E I .

Q:

Problem # 5 For the beam and loading shown, determine ( a ) the deflection at point C , ( b ) the slope at end A . 1 = - P a b ( L + b ) 6 E I L 2 = P a b ( L + a ) y

Q:

9 . 6 9 Using method of superposition, for the beam and loading shown, determine ( a ) the deflection at C , ( b ) the slope at end A . Fig. P 9 . 6 9

Q:

9 . 6 9 through 9 . 7 2 For the beam and loading shown, determine ( a ) the deflection at C , ( b ) the slope at end A . Fig. P 9 . 6 9 Please solve it using superposition method,Therefore no...

Q:

The beam has a pin support at A and a roller support at C and is subjected to the loading shown. Determine the vertical deflection at point B using beam deflection tables. w = 3.5 kips/ft P = 10 kips...

Q:

A. The beam is subjected to the load at its end. Determine the maximum principal stress at point B. B. The beam is subjected to the loading shown. Determine the principal stress at point C. 75 mm 75...

Q:

The beam has a pin support at A and a roller support at C and is subjected to the loading shown. Determine the vertical deflection at point B . W = 3 kip s f t P = 7 kips L = 5 f t E = 2 9 , 0 0 0...
