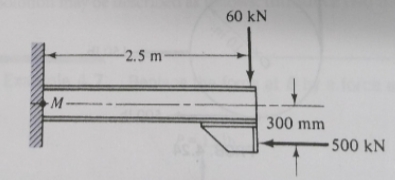

Question: for the beam column shown, replace the forces by a resultant force at M and a couple. ( Hint: Replace each force at M and

for the beam column shown, replace the forces by a resultant force at M and a couple. (Hint: Replace each force at M and a couple. add the forces and couples to find a single force at M and a single couple.)
for the beam column shown, replace the forces by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

The forces F 1 = { - 4 i + 4 j - 2 k } k N and F 2 = { 4 i - 3 j - 2 k } k N act on the end of the beam. Replace these forces by an equivalent force and couple moment acting at point O . ( Figure 1 )...
