Question: For the beam shown, determine the internal forces at a point E , located 2 . 9 m to the right of point C .

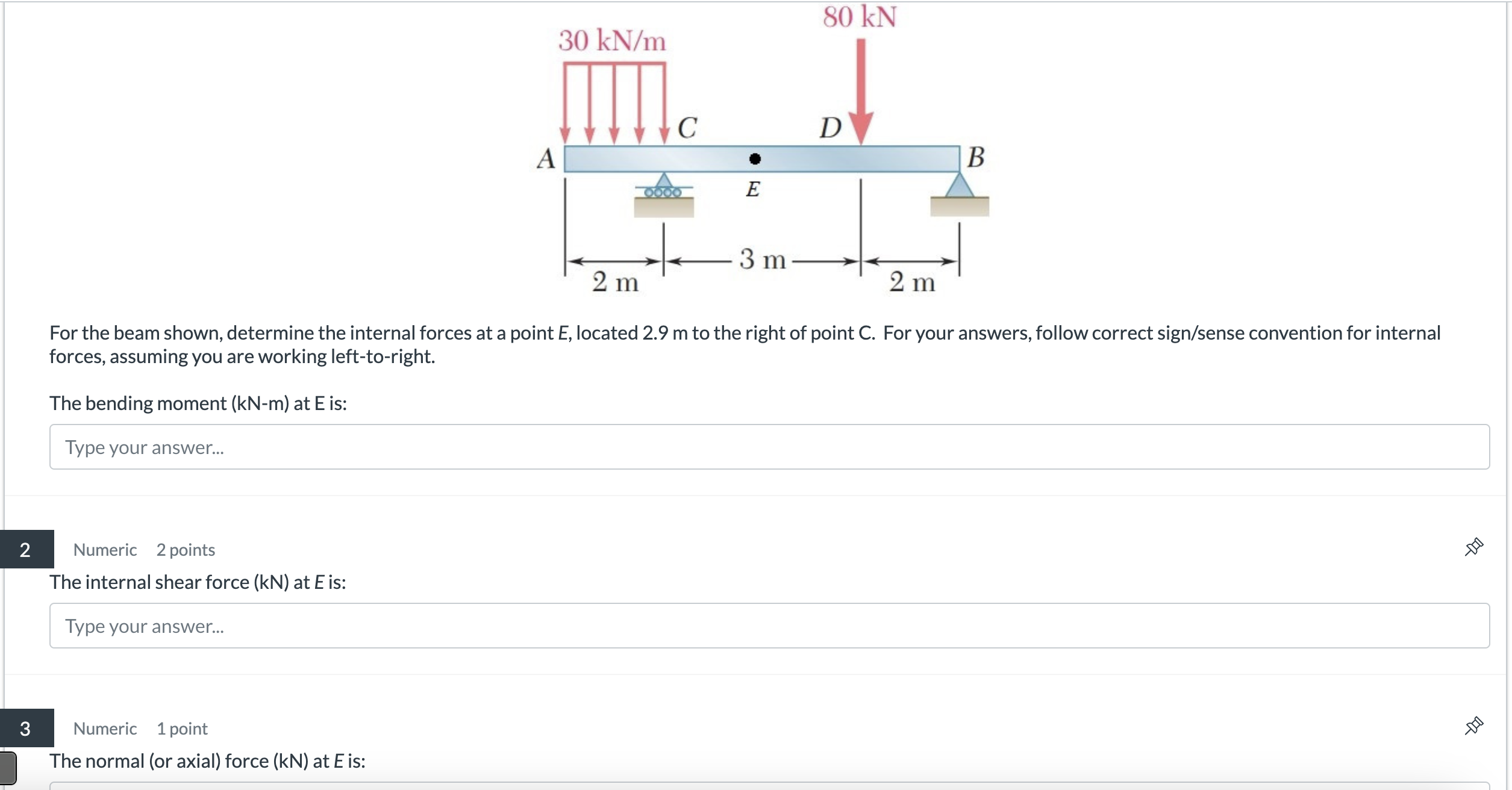

For the beam shown, determine the internal forces at a point E, located 2.9 m to the right of point C . For your answers, follow correct sign/sense convention for internal forces, assuming you are working left-to-right.
The bending moment (\(\mathrm{kN}-\mathrm{m}\)) at E is:
Type your answer...
The internal shear force \((\mathrm{kN})\) at \( E \) is:
Type your answer...
The normal (or axial) force \((\mathrm{kN})\) at \( E \) is:
For the beam shown, determine the internal forces

Step by Step Solution

There are 3 Steps involved in it
