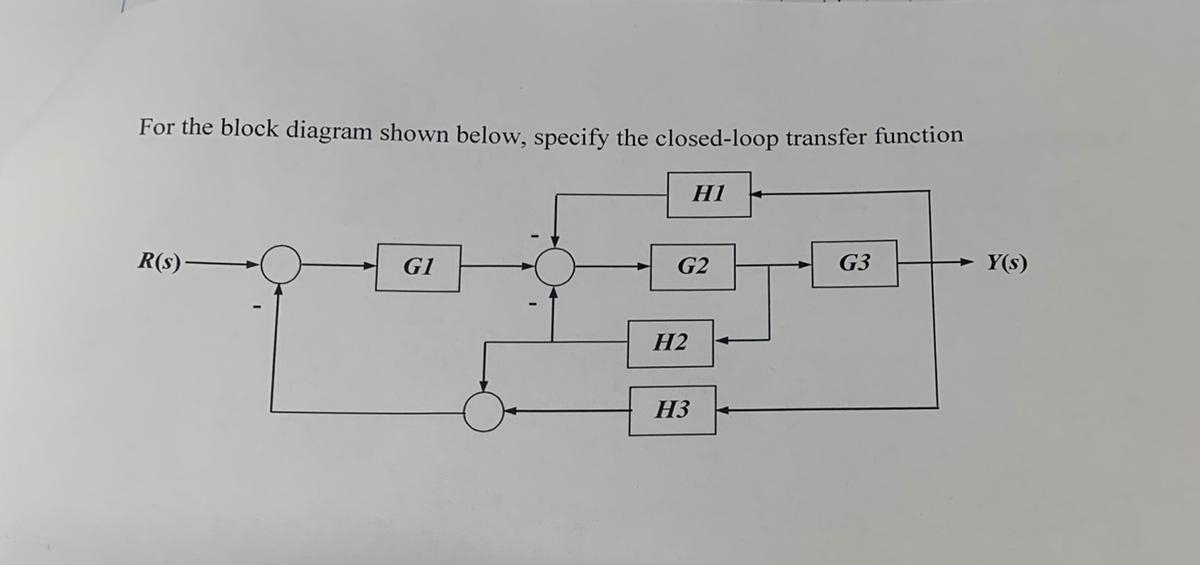

Question: For the block diagram shown below, specify the closed - loop transfer function

For the block diagram shown below, specify the closed-loop transfer function
For the block diagram shown below, specify the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Electrical Engineering Questions!

Q:

a=1/s integral B=1/s integral C=2 d=1.5 E=.01 Construct the following block diagram (Figure 3) in Labview. Using values shown below, simulate the diagram and plot the output vs. time. Use a...

Q:

Q 2 ( a ) What is a block diagram? ( b ) Simplify the block diagram shown below and obtain the closed - loop transfer function Y S Y s p ( S ) = G ( S ) ( c ) State the two distinguishing features of...

Q:

A system is represented by the block diagram shown below. C(s) (a) Calculate the transfer function using block diagram reduction techniques. You must R(S) show the reduction process step by step (b)...

Q:

help me with this please fast dynamic system a) Apply block diagram reduction techniques, simplify the block diagram shown in Figure Q2a. Obtain the transfer function relating the output C/s) to the...

Q:

a) Apply block diagram reduction techniques, simplify the block diagram shown in Figure Q2a. Obtain the transfer function relating the output C(s) to the disturbance R(s). R(s) + V(s) V6(s) G(s)...

Q:

A control system is shown What is the closed loop transfer function, Y ( s ) R ( s ) , for the given system? ( A ) G 1 G 2 G 3 1 - G 4 G 1 G 3 ( B ) G 1 1 + G 1 G 2 - G 4 G 1 G 3 ( C ) G 1 G 3 1 + G...

Q:

A combined feedback-feedforward control strategy works in the following way. For the system shown below obtain the closed loop transfer function between Y and D in terms of G ff . Take the value of K...

Q:

A combined feedback-feedforward control strategy works in the following way. For the system shown below obtain the closed loop transfer function between Y and D in terms of Gf. Take the value of K =...

Q:

A combined feedback-feedforward control strategy works in the following way. For the system shown below obtain the closed loop transfer function between Y and D in terms of Gf. Take the value of Kc =...

Q:

The dynamic relation between a process output variable Y(s) and a process input variable X(s) is described by a first order transfer function with a time constant of 5 mins. The output is controlled...
