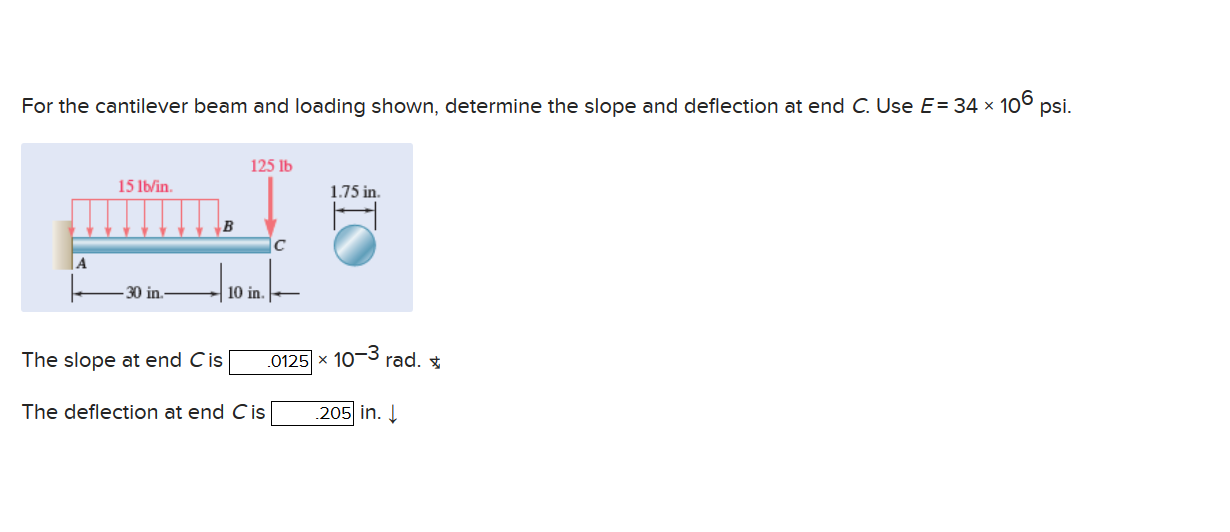

Question: For the cantilever beam and loading shown, determine the slope and deflection at end C . Use E = 3 4 1 0 6 psi.

For the cantilever beam and loading shown, determine the slope and deflection at end C. Use E =34106 psi.
The slope at end C is 103 rad.
The deflection at end C is in.
For the cantilever beam and loading shown,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
