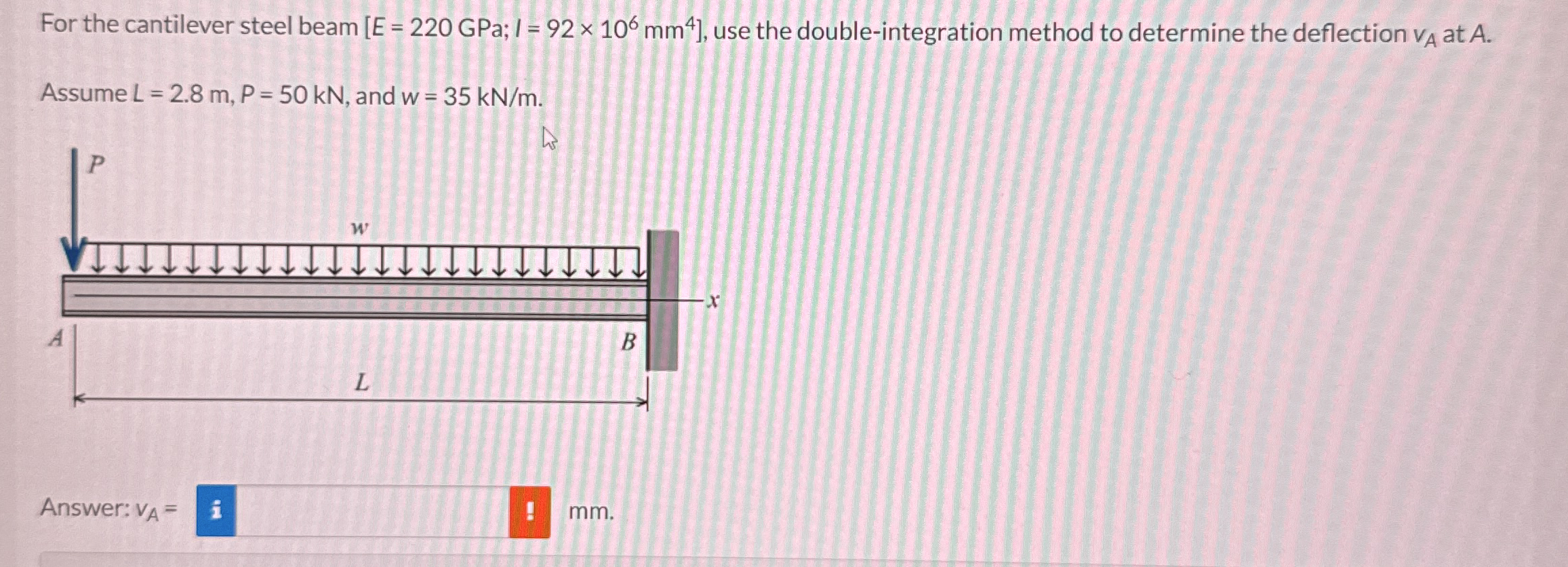

Question: For the cantilever steel beam E = 2 2 0 GPa; I = 9 2 1 0 6 m m 4 , use the double

For the cantilever steel beam E=220GPa;I=92106mm4, use the double-integration method to determine the deflection vA at A.
Assume L=2.8m,P=50kN, and w=35kNm.
Answer: vA= mm.
For the cantilever steel beam E = 2 2 0 GPa; I =

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
