Question: For the circuit below, given that ? b a r ( E ) A B = 2 0 7 . 8 V ? 1 5

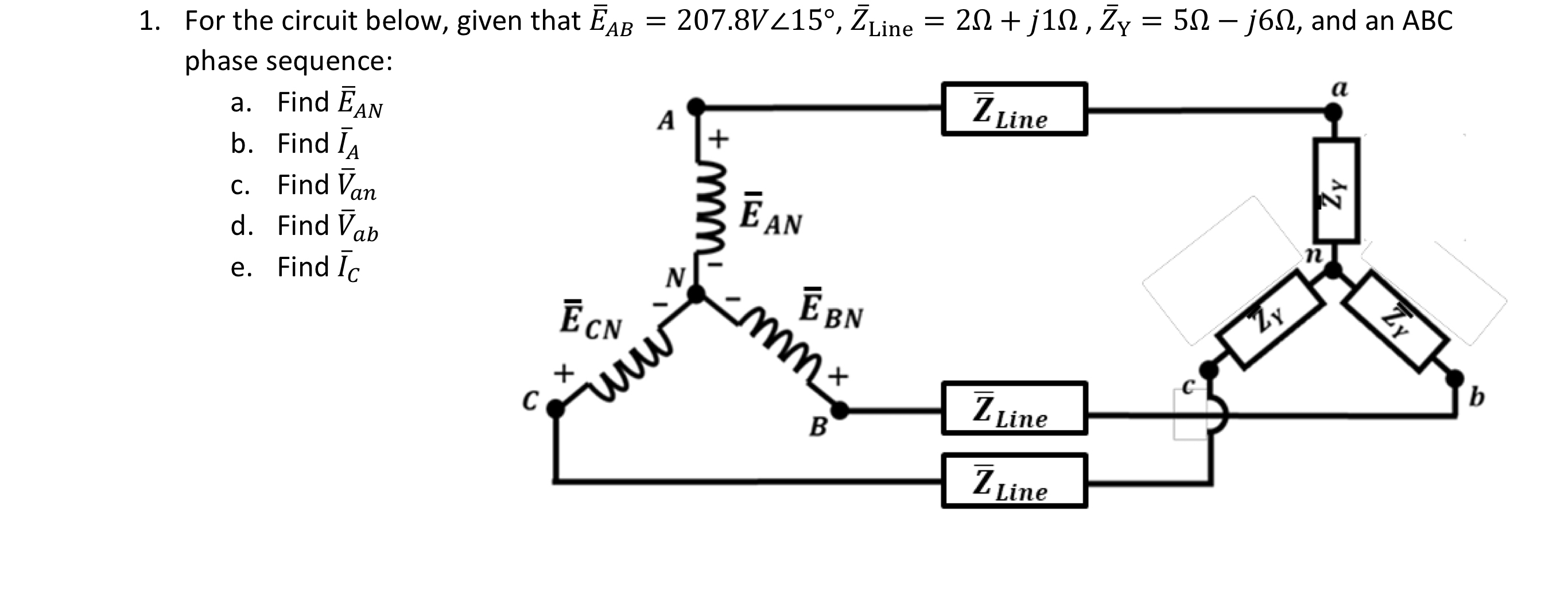

For the circuit below, given that ?bar(E)AB=207.8V?15,bar(Z)Line=2+j1,bar(Z)Y=5-j6, and an ABC phase sequence:
a. Find ?bar(E)AN
b. Find ?bar(I)A
c. Find ?bar(V)an
d. Find ?bar(V)ab
e. Find ?bar(I)C
For the circuit below, given that ? b a r ( E ) A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
