Question: For the circuit below, given that E A M = 1 0 0 V ? - 1 0 , z L h e = 5

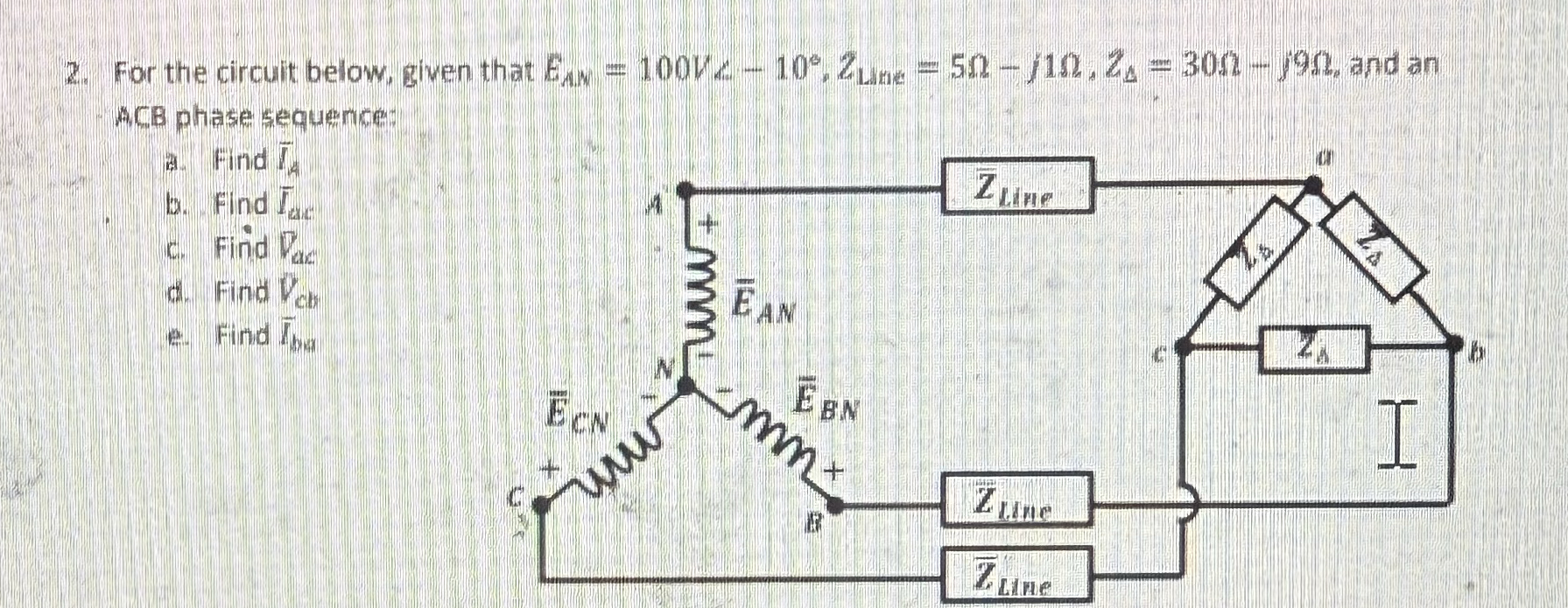

For the circuit below, given that EAM=100V?-10,zLhe=5-j1,z=30-j9, and an ACB phase sequence:
a. Find IA
b. Find Iac
c. Find gradac
d. Find Vcb
e. Find ?bar(I)ba
For the circuit below, given that E A M = 1 0 0 V

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
