Question: For the circuit below with k = 2 , is 1 ( t ) = 3 cos ( 2 t + 3 8 deg

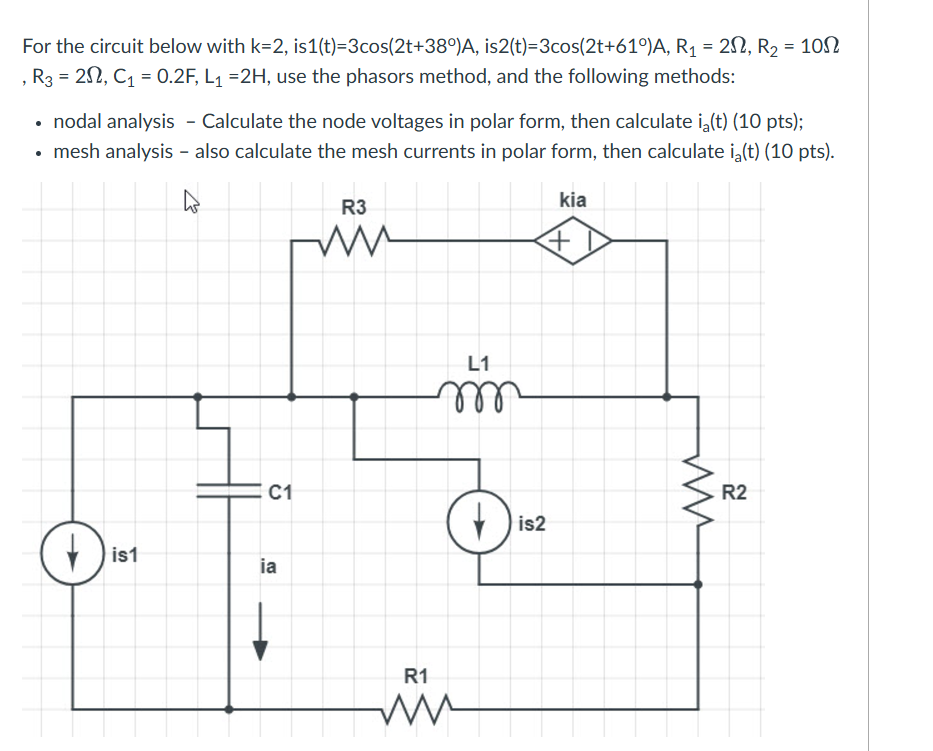

For the circuit below with k=2, is 1(t)=3cos(2t+38\deg )A, is 2(t)=3cos(2t+61\deg )A,R_(1)=2\Omega ,R_(2)=10\Omega
, R_(3)=2\Omega ,C_(1)=0.2F,L_(1)=2H, use the phasors method, and the following methods:
nodal analysis - Calculate the node voltages in polar form, then calculate i_(a)(t)(10 pts);
mesh analysis - also calculate the mesh currents in polar form, then calculate i_(a)(t)(10 pts).
For the circuit below with k = 2 , is 1 ( t ) = 3
