Question: For the circuit, ( mathrm { V } _ { 1 } ) is 1 V DC and ( mathrm

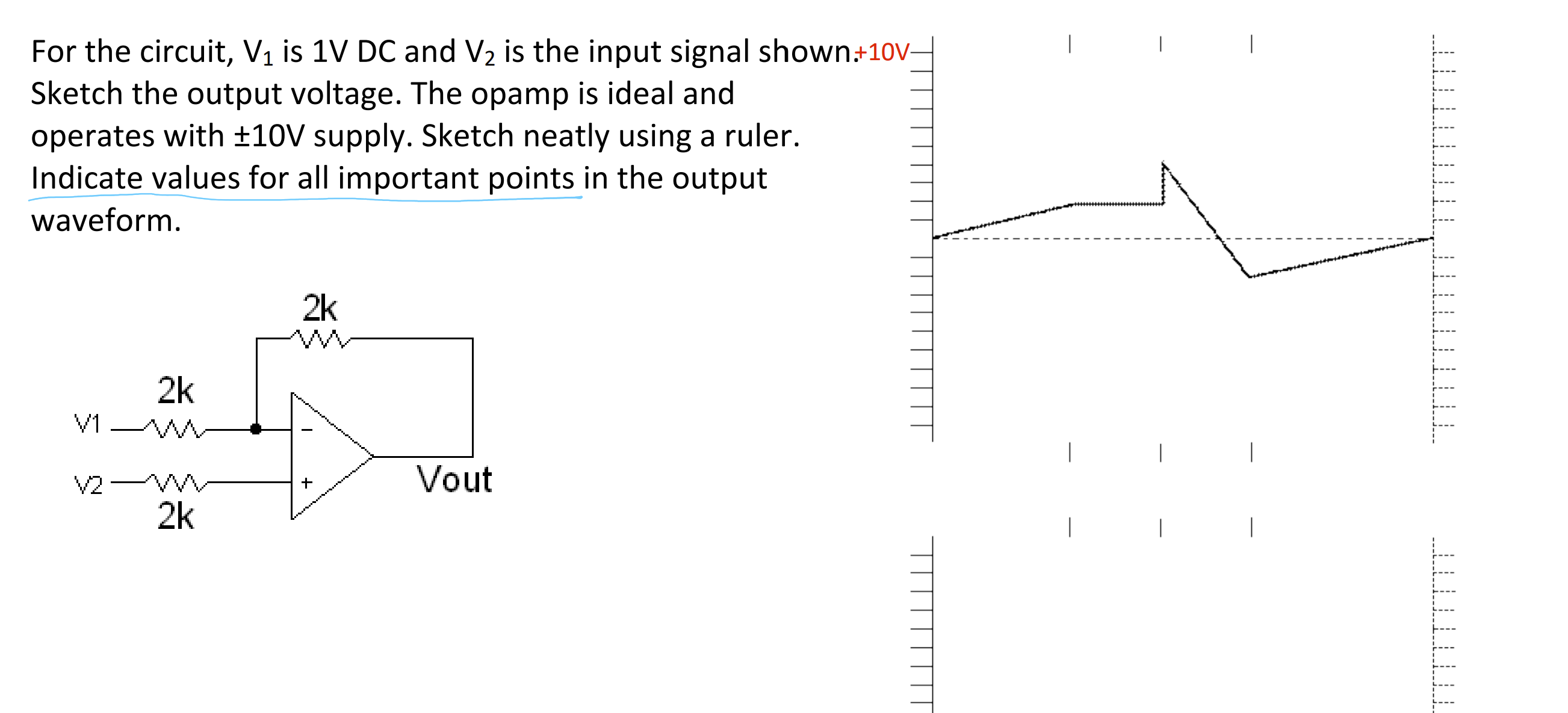

For the circuit, \(\mathrm{V}_{1}\) is 1 V DC and \(\mathrm{V}_{2}\) is the input signal shown +10 V Sketch the output voltage. The opamp is ideal and operates with \(\pm 10\mathrm{~V}\) supply. Sketch neatly using a ruler. Indicate values for all important points in the output waveform.
For the circuit, \ ( \ mathrm { V } _ { 1 } \ )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
