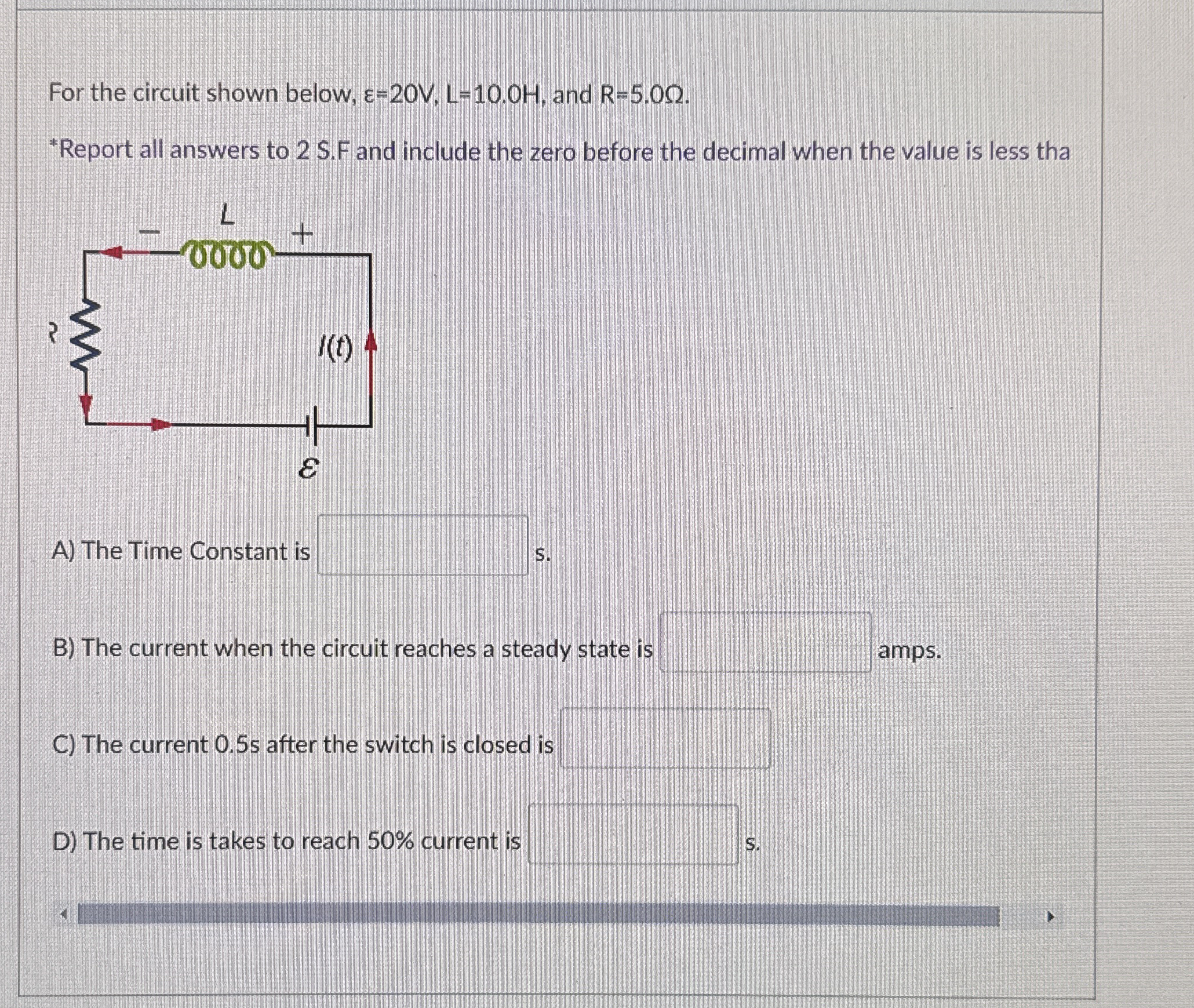

Question: For the circuit shown below, = 2 0 V , L = 1 0 . 0 H , and R = 5 . 0 .

For the circuit shown below, =20V,L=10.0H, and R=5.0.
*Report all answers to 2 S.F and include the zero before the decimal when the value is less tha
A) The Time Constant is s.
B) The current when the circuit reaches a steady state is amps.
C) The current 0.5 s after the switch is closed is
D) The time is takes to reach 50% current is
For the circuit shown below, = 2 0 V , L = 1 0 .
