Question: For the circuit shown below solve for: a . The total resistance of the circuit. ( ans: 1 3 5 ) b . Use Ohm's

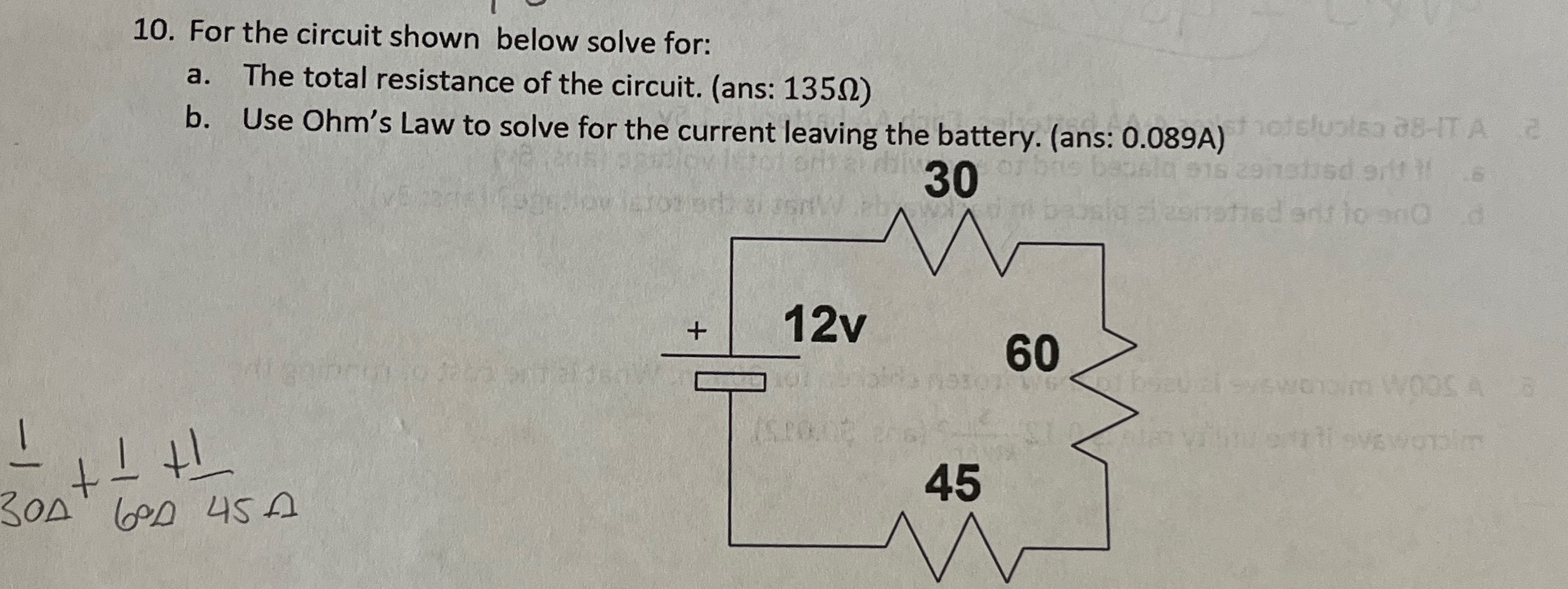

For the circuit shown below solve for:
a. The total resistance of the circuit. (ans: 135)
b. Use Ohm's Law to solve for the current leaving the battery. (ans: 0.089A)
For the circuit shown below solve for: a . The

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
