Question: Q 3 . A power system network configuration is shown below. All components in the network have the same mission reliability equal to p

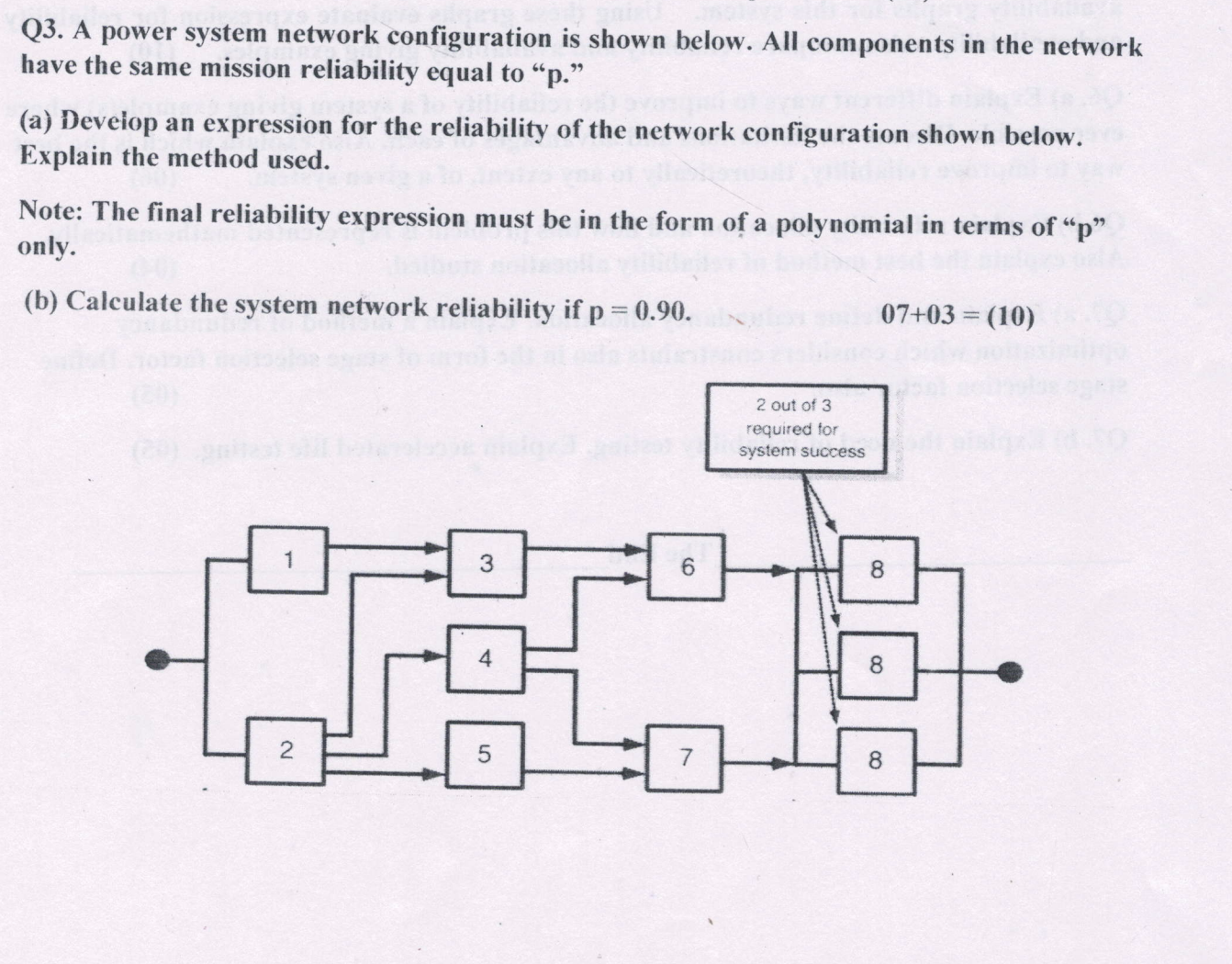

Q3. A power system network configuration is shown below. All components in the network have the same mission reliability equal to "p."
(a) Deveiop an expression for the reliability of the network configuration shown below. Explain the method used.
Note: The final reliability expression must be in the form of a polynomial in terms of "p" only.
Q 3 . A power system network configuration is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
