For the circuits in this tutorial, use the PHET Circuit Construction Kit simulation. https://phet.colorado.edu/en/simulations/circuitconstruction-kit-dc

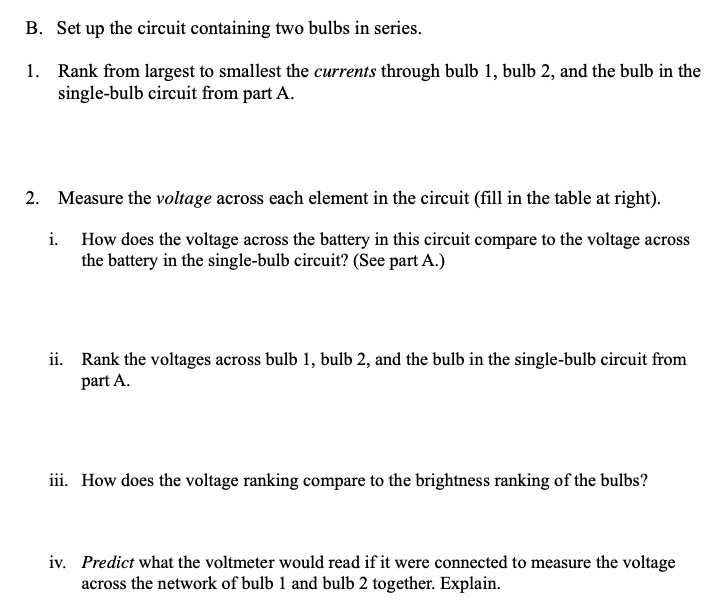

B. Set up the circuit containing two bulbs in series. 1. Rank from largest to smallest the (rm-rents through bulb l, bulb 2, and the bulb in the single-bulb circuit from part A. 2. Measure the voltage across each element in the circuit (ll in the table at right). i. How does the voltage across the battery in this circuit compare to the voltage across the batter}.Ir in the single-be circuit? {See part A.) ii. Rank the voltages across bulb l, bulb 2, and the bulb in the single-bulb circuit from part A. iii. How does the voltage ranking compare to the brightness ranking of the bulbs? iv. Predict what the voltmeter would read if it were connected to measure the voltage across the network of bulb l and bulb 2 together. Explain. A. Set up a circuit with a single bulb. Connect each probe of the voltmeter to a different terminal of the battery holder to measure the voltage across the battery. To measure the voltage across the bulb, connect each probe of the voltmeter to a different terminal of the bulb. How does the voltage across the bulb compare to the voltage across the battery? * Save the single bulb circuit-you will returning to it throughout the remainder of tutorial.*V. Test your prediction.C. Set up the circuit with two bulbs in parallel as shown. 1. Rank the currents through bulb 1, bulb 2, and the bulb in the single-bulb circuit from part A. Explain. 2. How does the current through bulb 1 compare to the current through the battery? 3. How does the voltage across the network of bulbs compare to the voltage across the battery? i. Measure the voltage across each circuit element. V Bat Bulb 1 VBulb 2 ii. How does the voltage across the battery in this circuit compare to the voltage across the battery in the single-bulb circuit?iii. Rank the voltage across bulb 1, bulb 2, and the bulb in the single-bulb circuit from part A. 4. How does the ranking by voltage compare to the ranking by brightness? D. Answer the following questions based on the measurements you have made so far. 1. Does the current through the battery depend on the circuit to which it is connected? Explain. 2. Does the voltage across the battery depend on the circuit to which it is connected? Explain. 3. Can you use the relative brightness of identical bulbs to compare the current though them? 4. Can you use the relative brightness of identical bulbs to compare the voltage across them
