Question: For the composite shape shown below, the small square is a hole. All units are in inches and the origin is located as shown. a

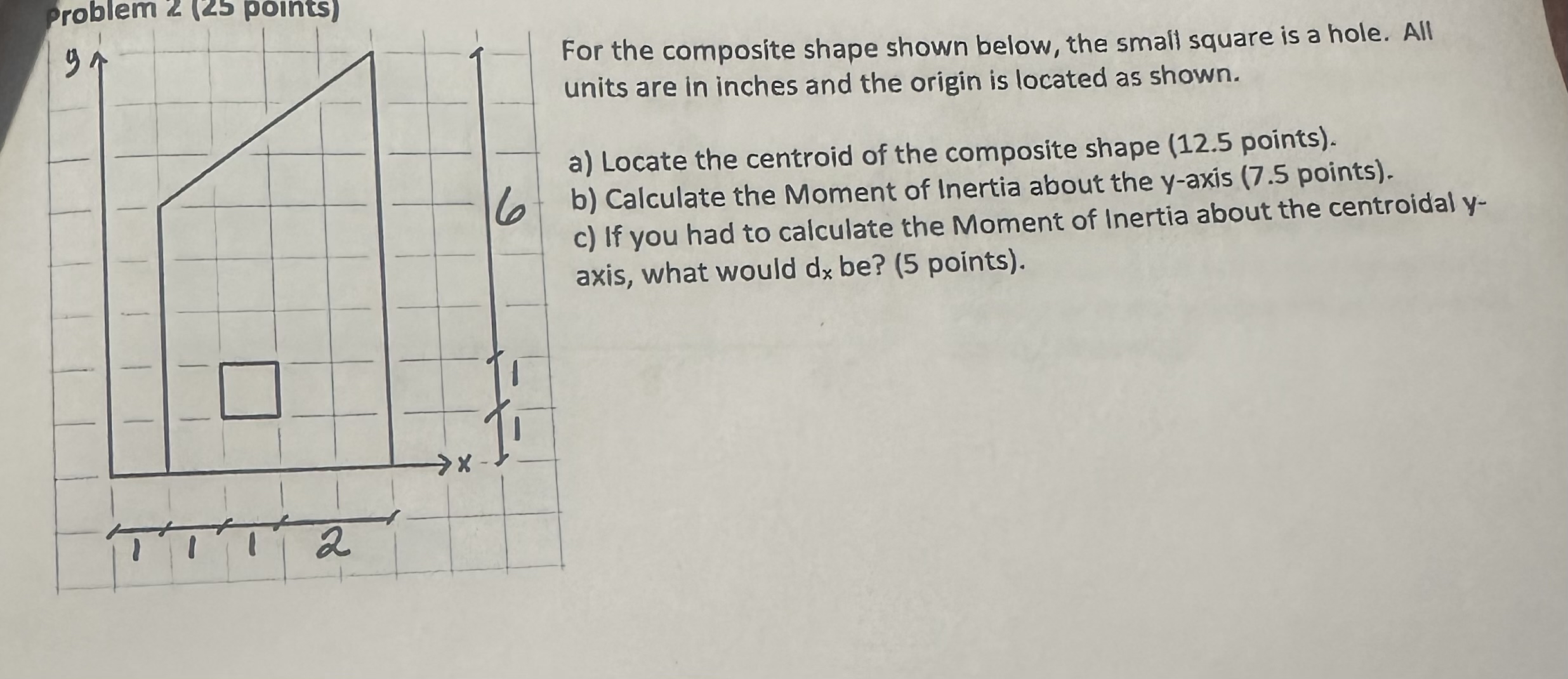

For the composite shape shown below, the small square is a hole. All units are in inches and the origin is located as shown.
a) Locate the centroid of the composite shape (12.5 points).
b) Calculate the Moment of Inertia about the y-axis (7.5 points).
c) If you had to calculate the Moment of Inertia about the centroidal y axis, what would dx be?(5 points).
For the composite shape shown below, the small
