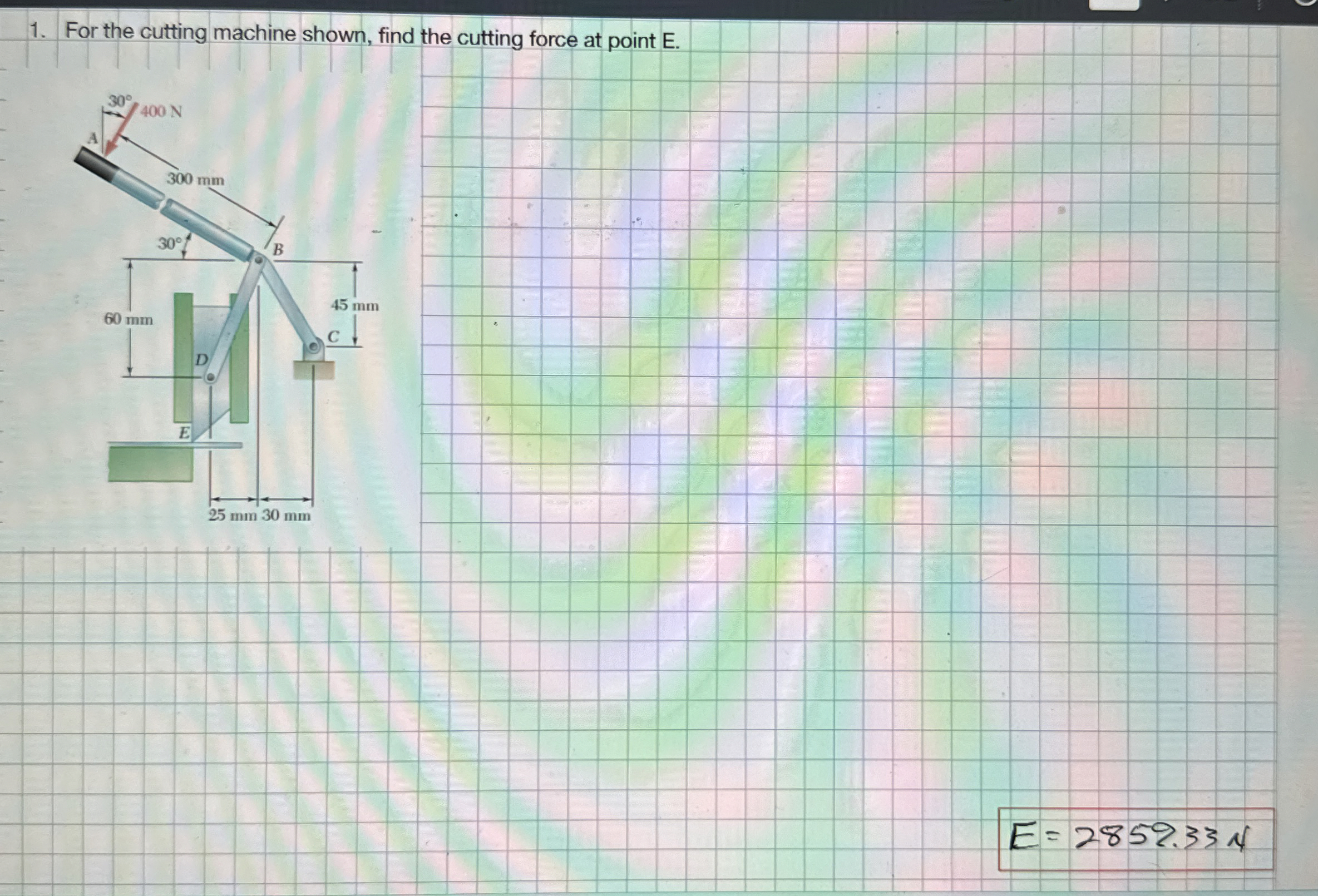

Question: For the cutting machine shown, find the cutting force at point E . E = 2 8 5 2 . 3 3 N

For the cutting machine shown, find the cutting force at point E.
E=2852.33N
For the cutting machine shown, find the cutting

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
