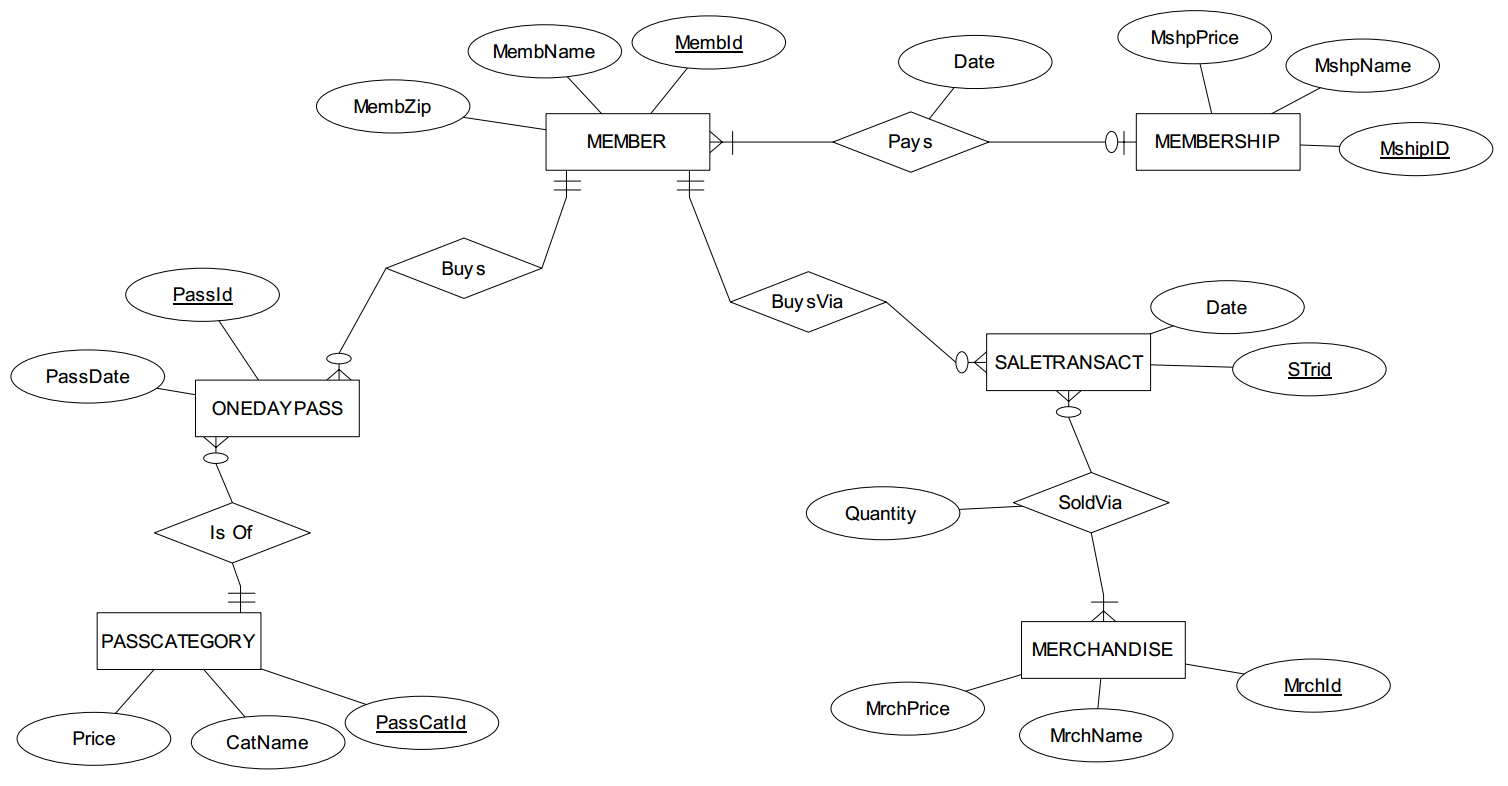

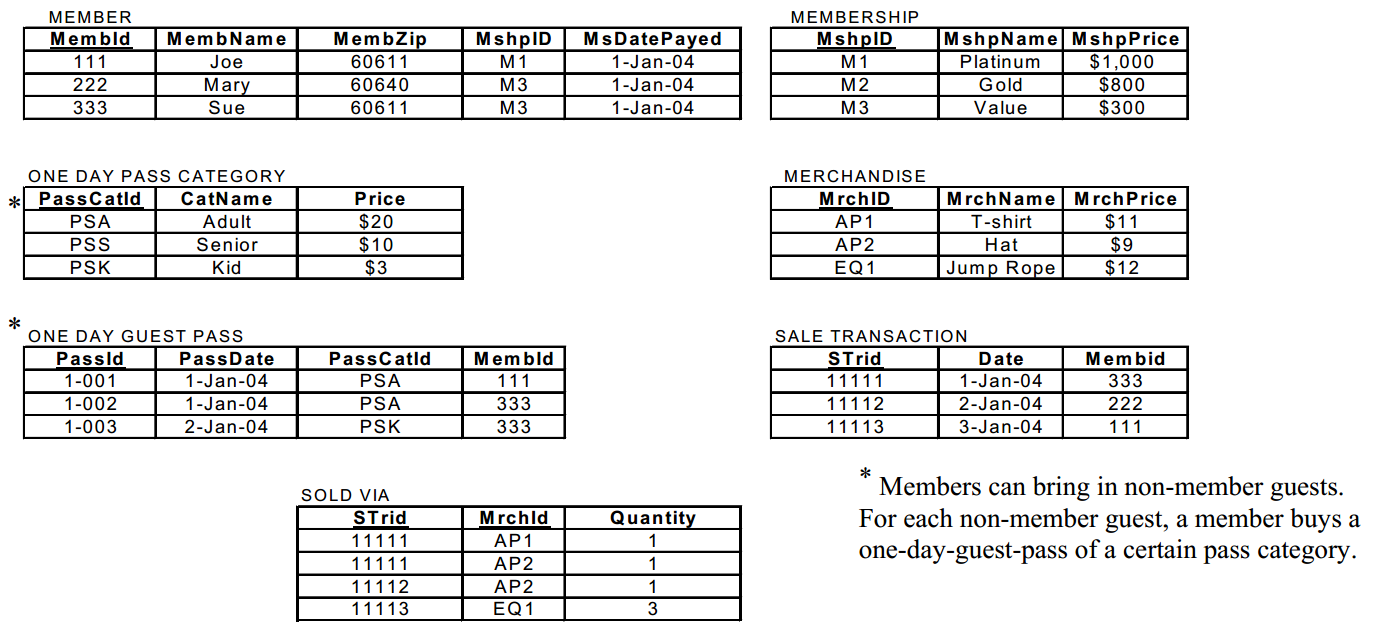

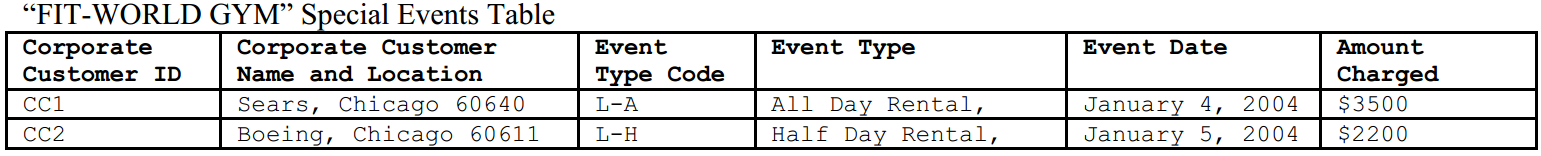

For the following data model and sample data, create a star schema diagram that will enable FIT-WORLD GYM INC. to analyze their revenue.

Also, explain the process to go from an ER diagram to a star schema (relational).
