Question: For the following forces: a . Write each force in cartesian vector notation b . Determine the resultant of these forces and write it in

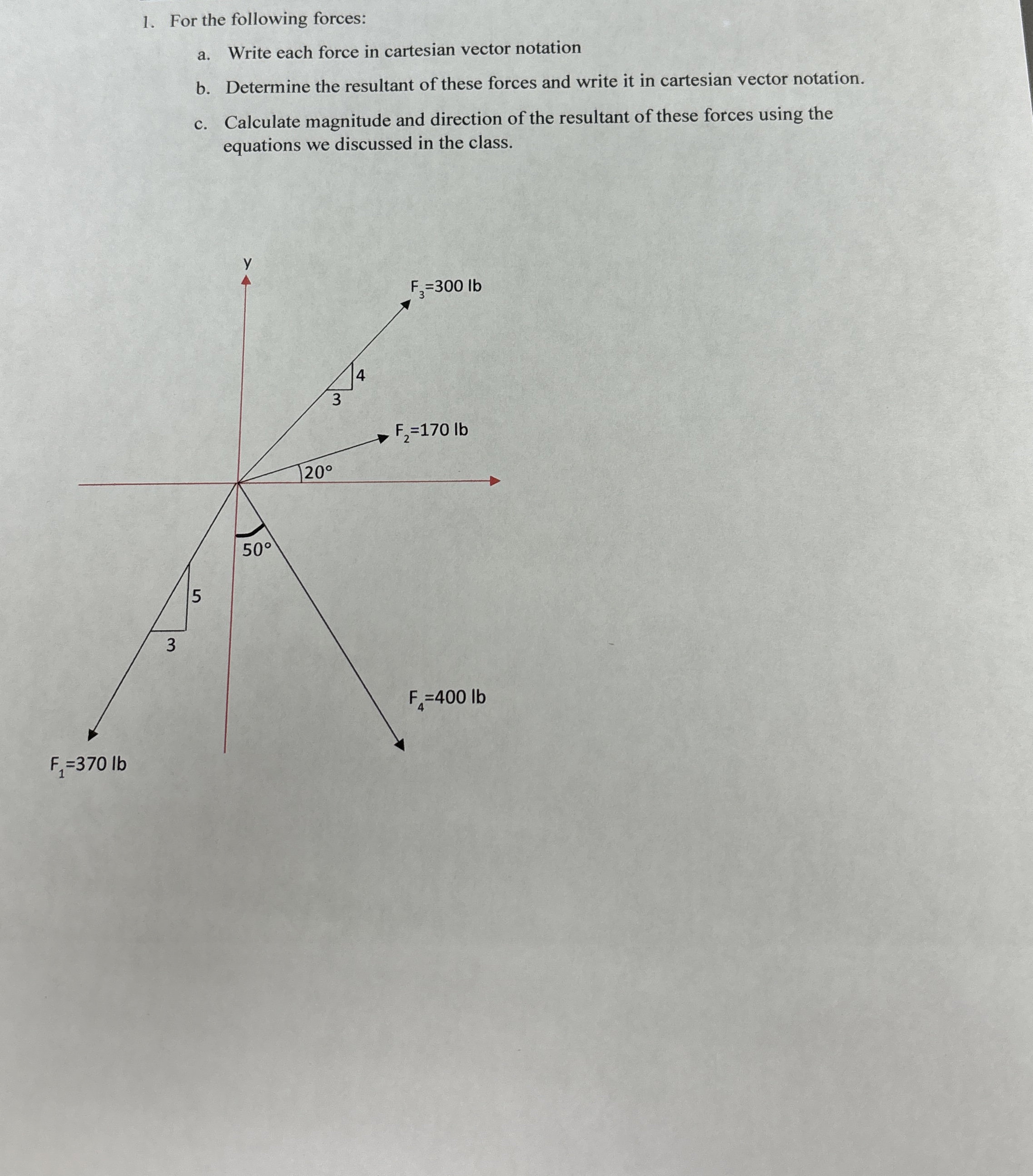

For the following forces:
a. Write each force in cartesian vector notation
b. Determine the resultant of these forces and write it in cartesian vector notation.
c. Calculate magnitude and direction of the resultant of these forces using the equations we discussed in the class.
For the following forces: a . Write each force in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
