Question: For the following task table, draw the network diagram, calculate total duration of the project, find the critical path and calculate free and total slack

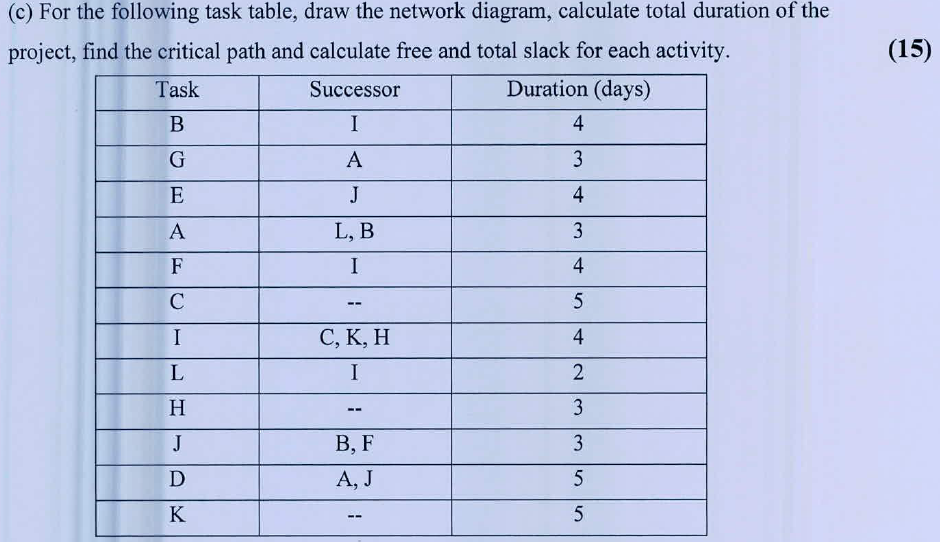

For the following task table, draw the network diagram, calculate total duration of the project, find the critical path and calculate free and total slack for each activity.

Please provide the network diagram using AOA method and try to be detailed as much as possible, thanks in advance

Step by Step Solution

There are 3 Steps involved in it
