Question: For the force system shown in Figure 2 , reduce the system of forces to a single force and moment system. All sides of the

For the force system shown in Figure 2, reduce the system of forces to a single force and
moment system. All sides of the hexagon are of equal length, a=3ft, resulting in all
central angles being 60. Hint: Imagine you hold the hexagon in place at a point of your
choice. What would be the reaction forces and moment at this location?

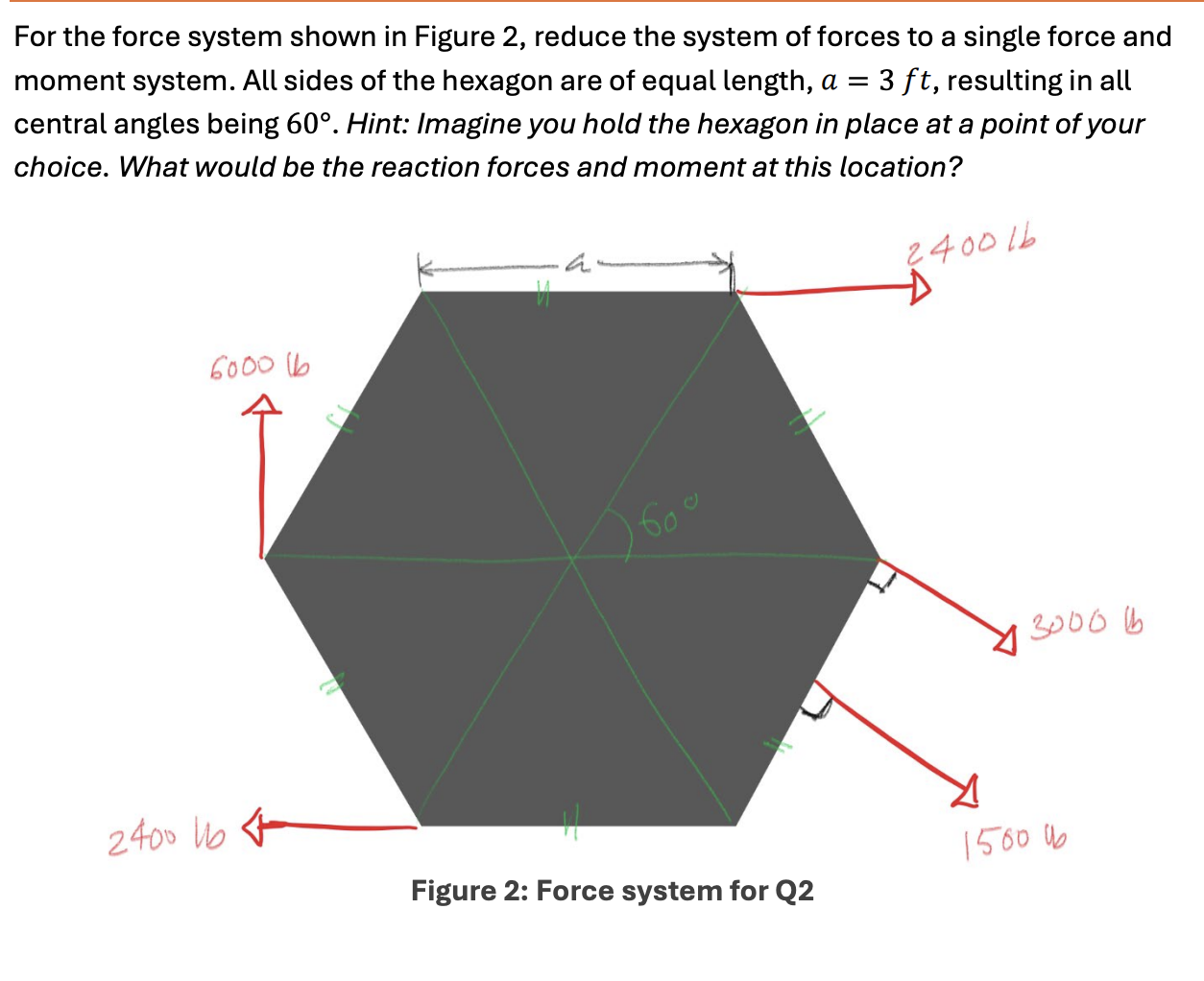

Figure 2: Force system for Q2
For the force system shown in Figure 2 , reduce

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
