Question: For the given circuit below, determine: a . ) Equivalent inductance, L e q . b . ) Current through L e q . Let

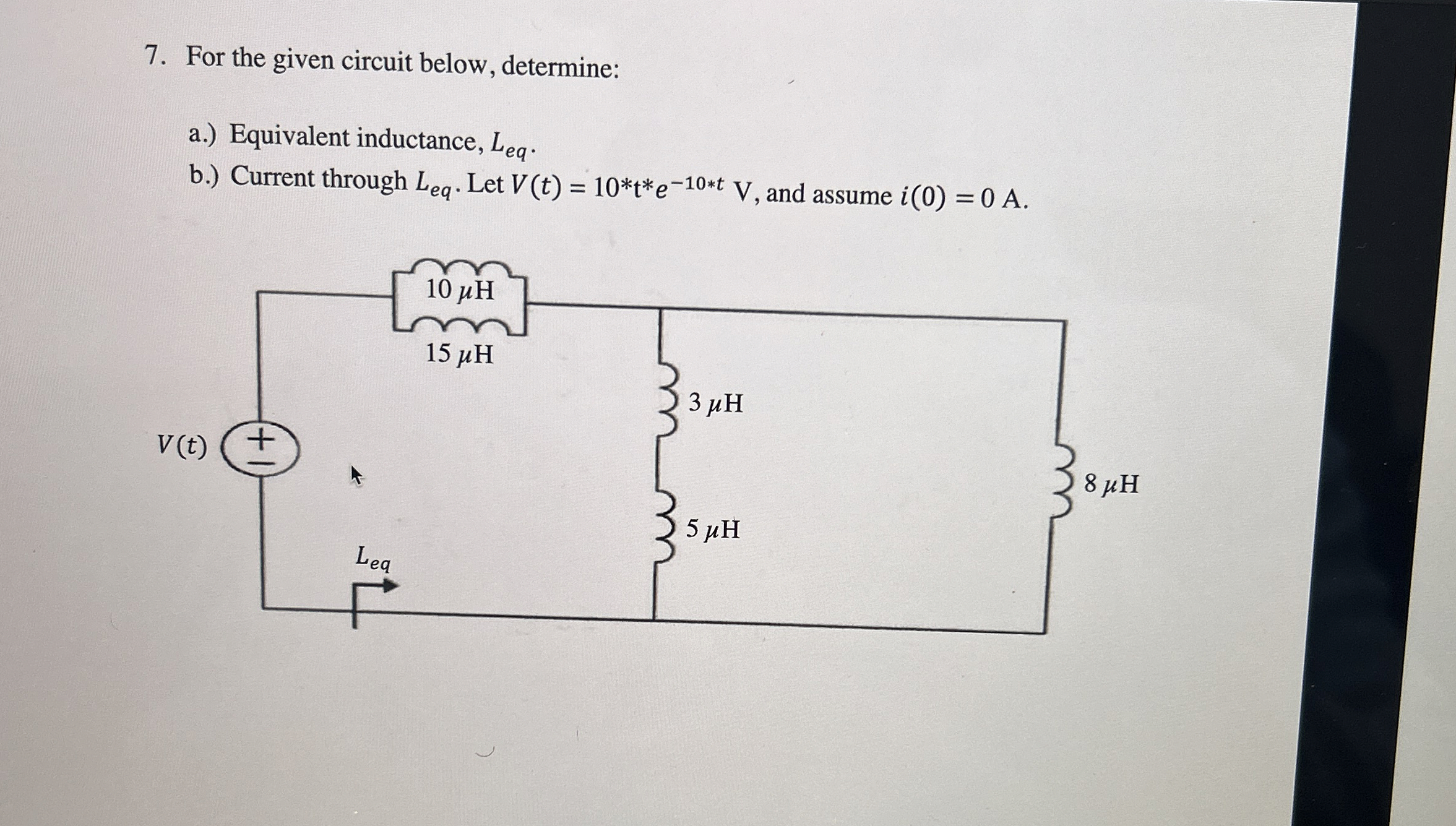

For the given circuit below, determine:
a.) Equivalent inductance, Leq.
b.) Current through Leq. Let V(t)=10**t**e-10**tV, and assume i(0)=0A.
For the given circuit below, determine: a . )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
