For the given pseudocode

a. Draw a control flow graph. Label the edges and the nodes in the graph with the corresponding code fragments.

b. Provide two tests that satisfy node and edge coverage (one for each).

c. If possible, lists test paths that achieve Node Coverage but not Edge Coverage. If not possible, explain why.

Please answer all 3 questions.

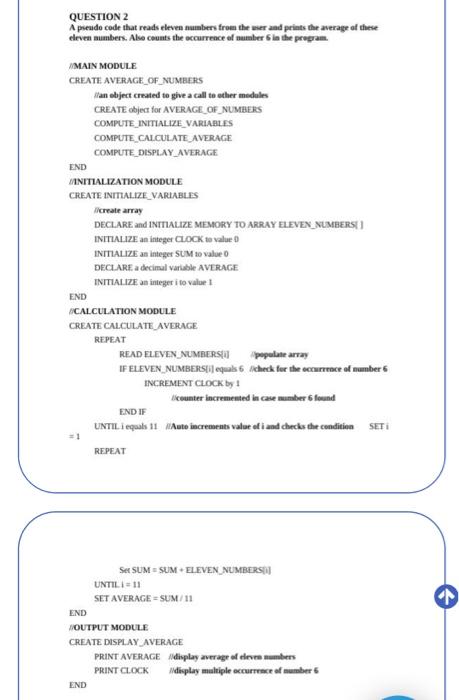

QUESTION 2 A pseudo code that reads eleven numbers from the wer and prints the average of these eleven numbers. Also counts the occurrence of number in the program. MAIN MODULE CREATE AVERAGE_OF_NUMBERS an object created to give a call to acher modules CREATE object for AVERAGE_OF_NUMBERS COMPUTE_INITIALIZE_VARIABLES COMPUTE_CALCULATE AVERAGE COMPUTE_DISPLAY_AVERAGE END WINITIALIZATION MODULE CREATE INITIALIZE_VARIABLES create array DECLARE and INITIALIZE MEMORY TO ARRAY ELEVEN_NUMBERS INITIALIZE an integer CLOCK to value INITIALIZE an integer SUM O value DECLARE a decimal variable AVERAGE INITIALIZE an integer i to value END CALCULATION MODULE CREATE CALCULATE_AVERAGE REPEAT READ ELEVEN NUMBERS! paspolate array IF ELEVEN NUMBERS[i] equals 6 check for the occurrence of number 6 INCREMENT CLOCK by 1 counter incremented in case umber found END IF UNTIL I equals 11 Auto increments value of and check the condition SETI =1 REPEAT SE SUM = SUM ELEVEN NUMBERS UNTIL 11 SET AVERAGE = SUM/11 END HOUTPUT MODULE CREATE DISPLAY_AVERAGE PRINT AVERAGE display average of devra umbes PRINT CLOCK display multiple occurrence of number 6 END
