Question: For the given truss x = 0 . 8 m and y = 0 . 3 7 5 m : a . Draw the free

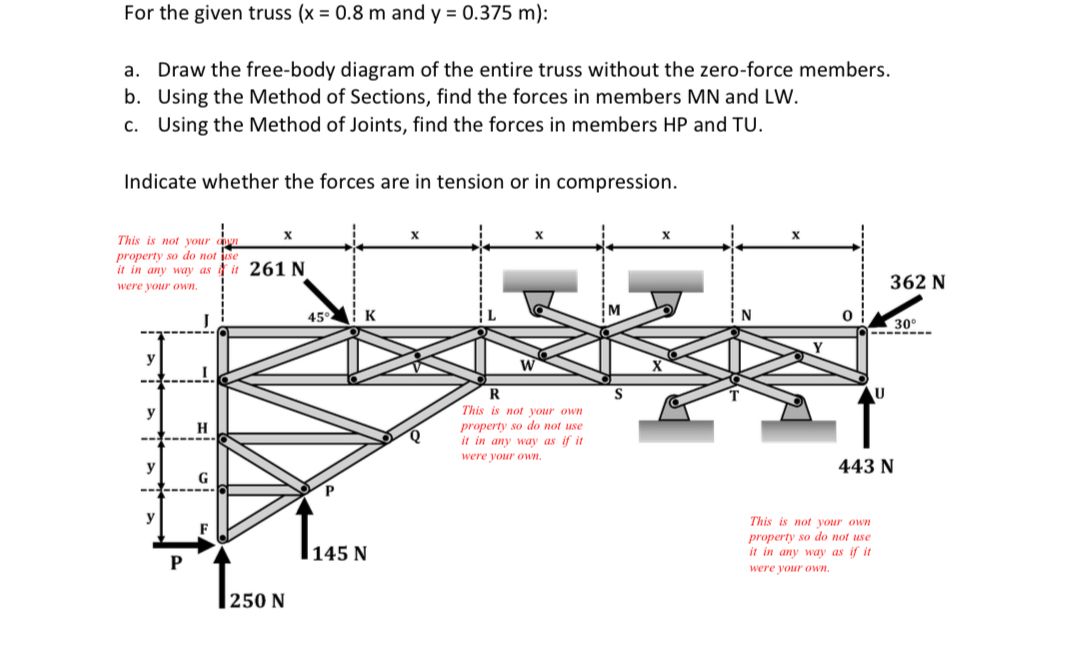

For the given truss x=0.8m and y=0.375m :
a. Draw the free-body diagram of the entire truss without the zero-force members.
b. Using the Method of Sections, find the forces in members MN and LW.
c. Using the Method of Joints, find the forces in members HP and TU.
Indicate whether the forces are in tension or in compression.
For the given truss x = 0 . 8 m and y = 0 . 3 7 5

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
