Question: For the loading shown, use the double - integration method to determine ( a ) the equation of the elastic curve for the cantilever beam,

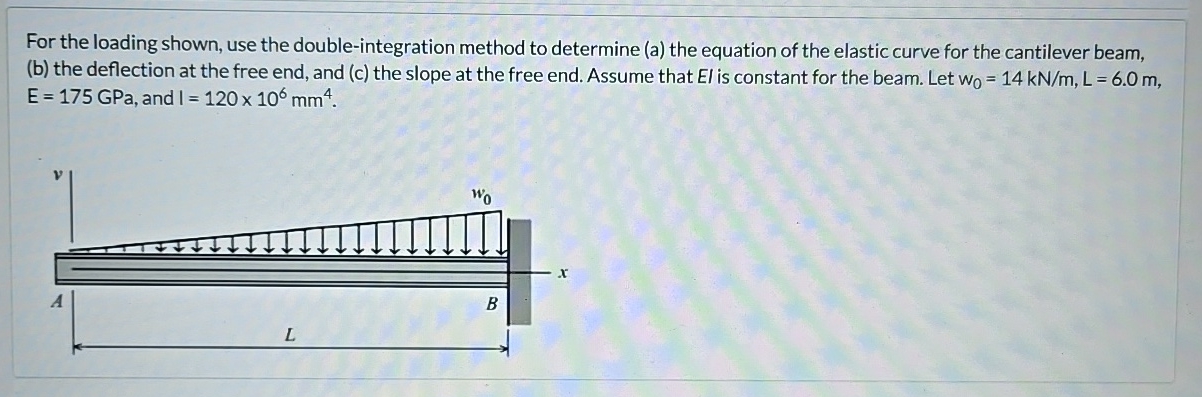

For the loading shown, use the double-integration method to determine (a) the equation of the elastic curve for the cantilever beam, (b) the deflection at the free end, and (c) the slope at the free end. Assume that El is constant for the beam. Let w0=14kNm,L=6.0m,E=175GPa, and I=120106mm4.
For the loading shown, use the double -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
