Question: For the partial roof plan below, the live load on the roof is 3 kPa. The dead load on the roof is 2 . 5

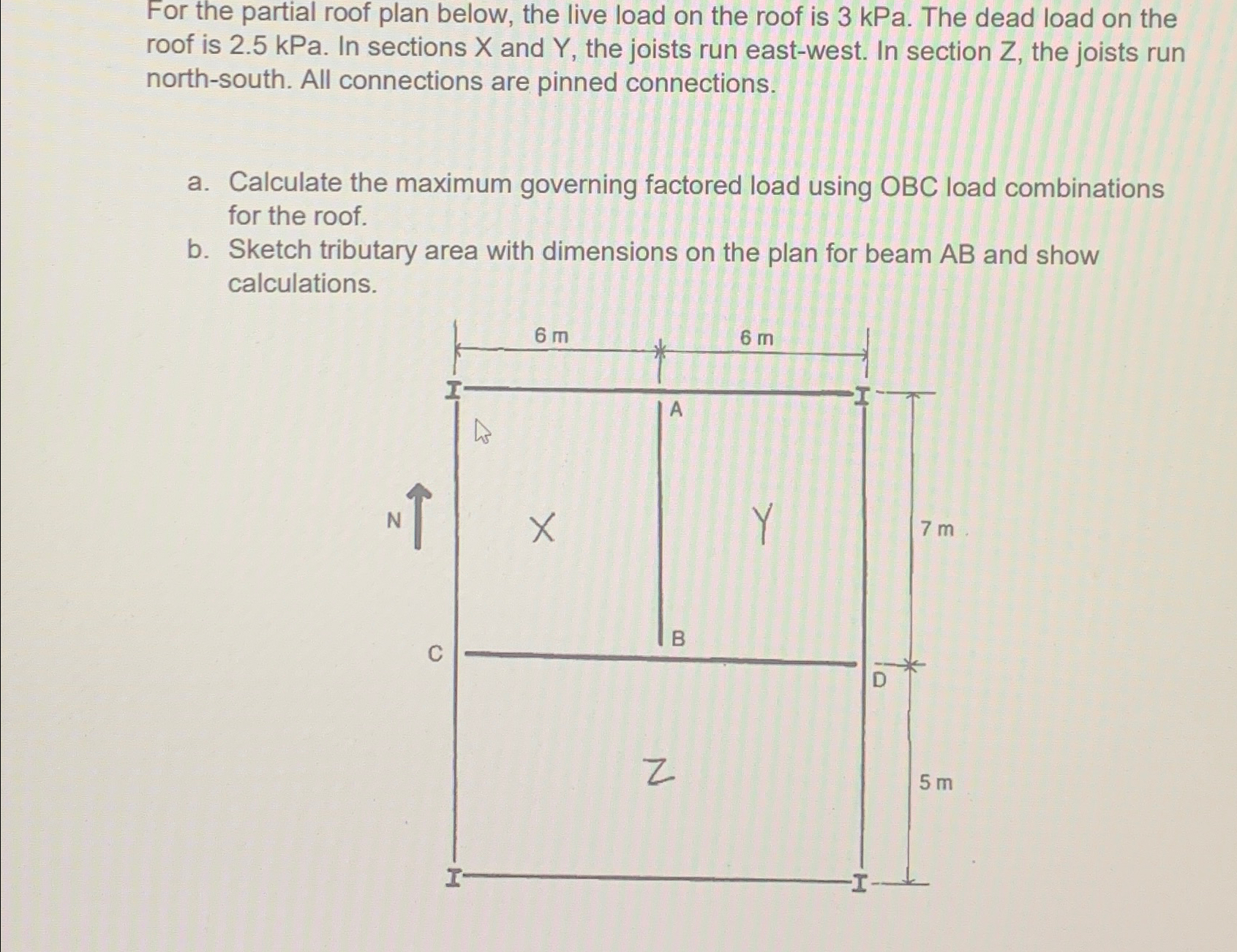

For the partial roof plan below, the live load on the roof is 3kPa. The dead load on the roof is 2.5kPa. In sections x and Y, the joists run east-west. In section Z, the joists run north-south. All connections are pinned connections.
a. Calculate the maximum governing factored load using OBC load combinations for the roof.
b. Sketch tributary area with dimensions on the plan for beam AB and show calculations.
For the partial roof plan below, the live load on

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
