Question: For the planetary gear train shown: N 2 = 2 0 t , N 4 = 4 0 t , N 5 = 1 8

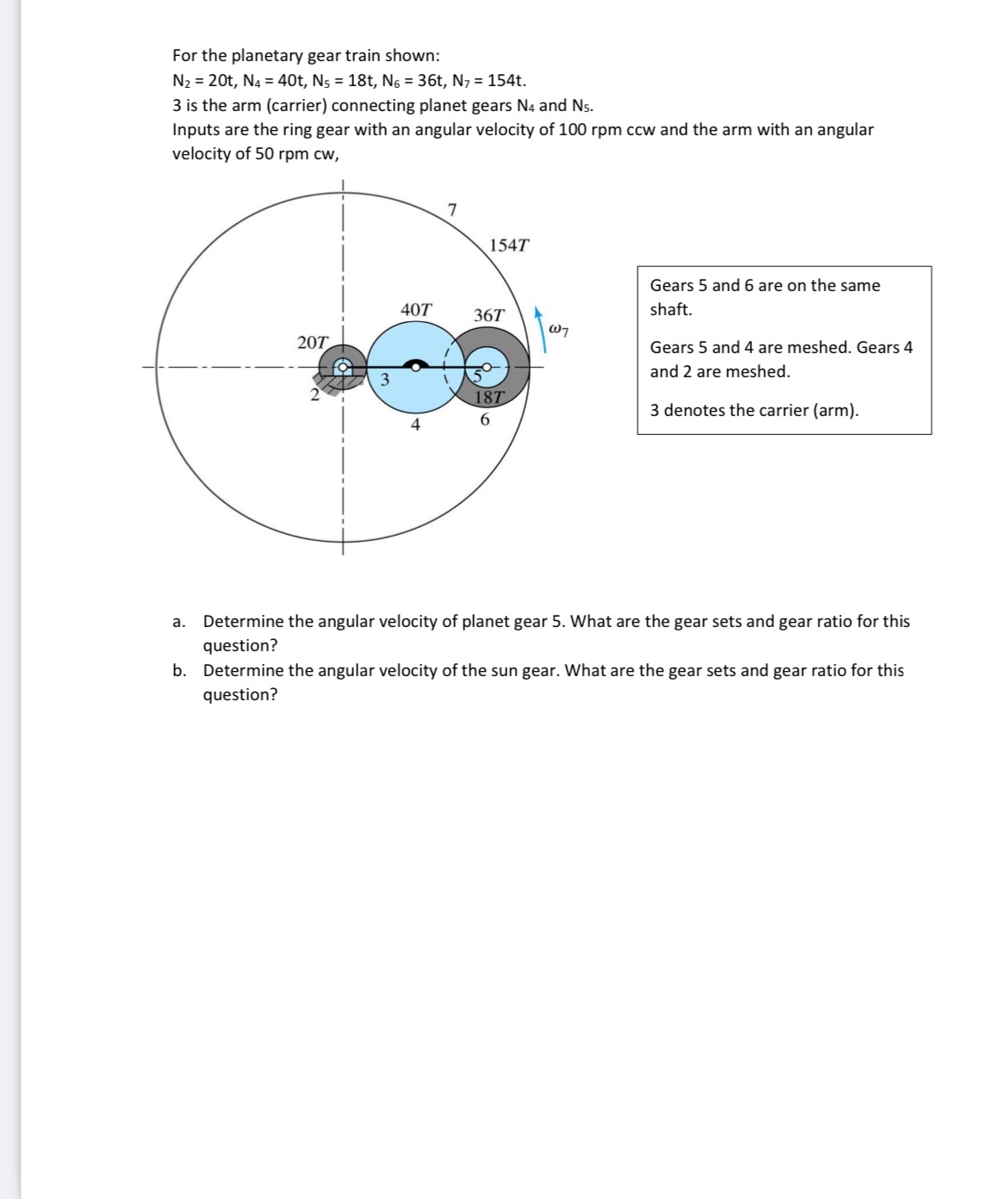

For the planetary gear train shown:
is the arm carrier connecting planet gears and
Inputs are the ring gear with an angular velocity of rpm ccw and the arm with an angular velocity of rpm cw
Gears and are on the same shaft.
Gears and are meshed. Gears and are meshed.
denotes the carrier arm
a Determine the angular velocity of planet gear What are the gear sets and gear ratio for this question?
b Determine the angular velocity of the sun gear. What are the gear sets and gear ratio for this question?
