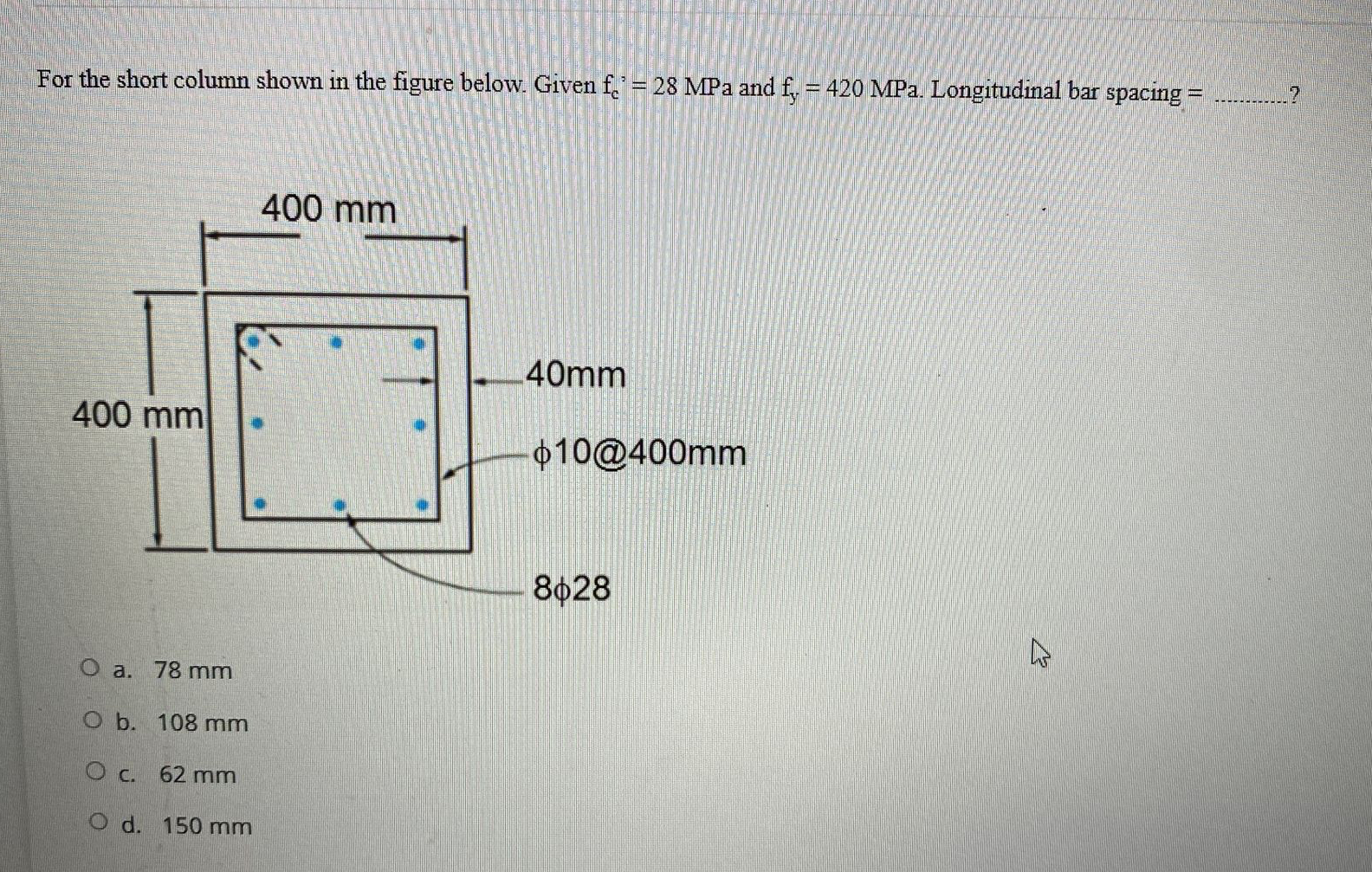

Question: For the short column shown in the figure below. Given f c ' = 2 8 MPa and f y = 4 2 0 MPa.

For the short column shown in the figure below. Given fc'=28MPa and fy=420MPa. Longitudinal bar spacing =q,
a.78mm
b.108mm
c.62mm
d.150mm
For the short column shown in the figure below.
