Question: For the solid square rod shown in the figure, compute factor of safety for yielding for the indicated static load. The peak stress will be

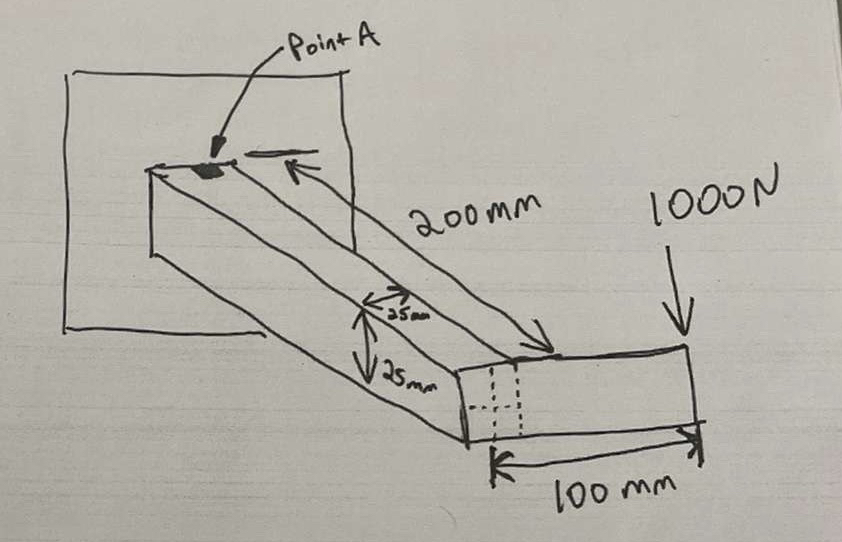

For the solid square rod shown in the figure, compute factor of safety for yielding for the indicated static load. The peak stress will be at Point A.
Given Data
Square rod material:
Aluminum
Yield strength of rod material:
Sy=152MPa
Stress concentrations at Point A:
Kt=Kts=2.2
For the solid square rod shown in the figure,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
