Question: .. For the spring system given in Figure: a) Number the elements and nodes. b) Write elemental equations. c) Compute global stiffness matrix. d)

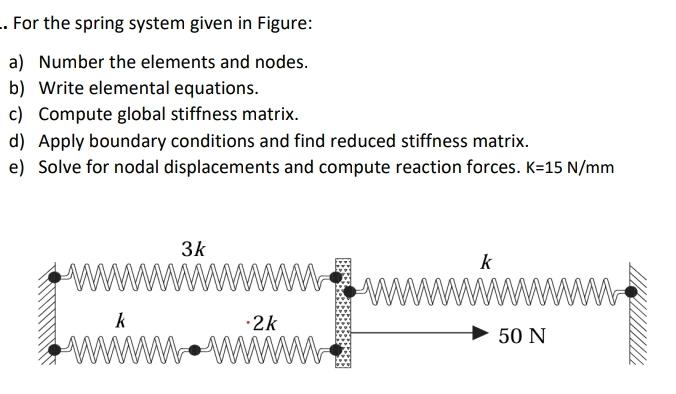

.. For the spring system given in Figure: a) Number the elements and nodes. b) Write elemental equations. c) Compute global stiffness matrix. d) Apply boundary conditions and find reduced stiffness matrix. e) Solve for nodal displacements and compute reaction forces. K=15 N/mm k 3k .2k wwwwwwwwwww k 50 N

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
