Question: For the system in Figure 3 : a ) Find the transfer function of the system with no disturbance b ) If the inpur is

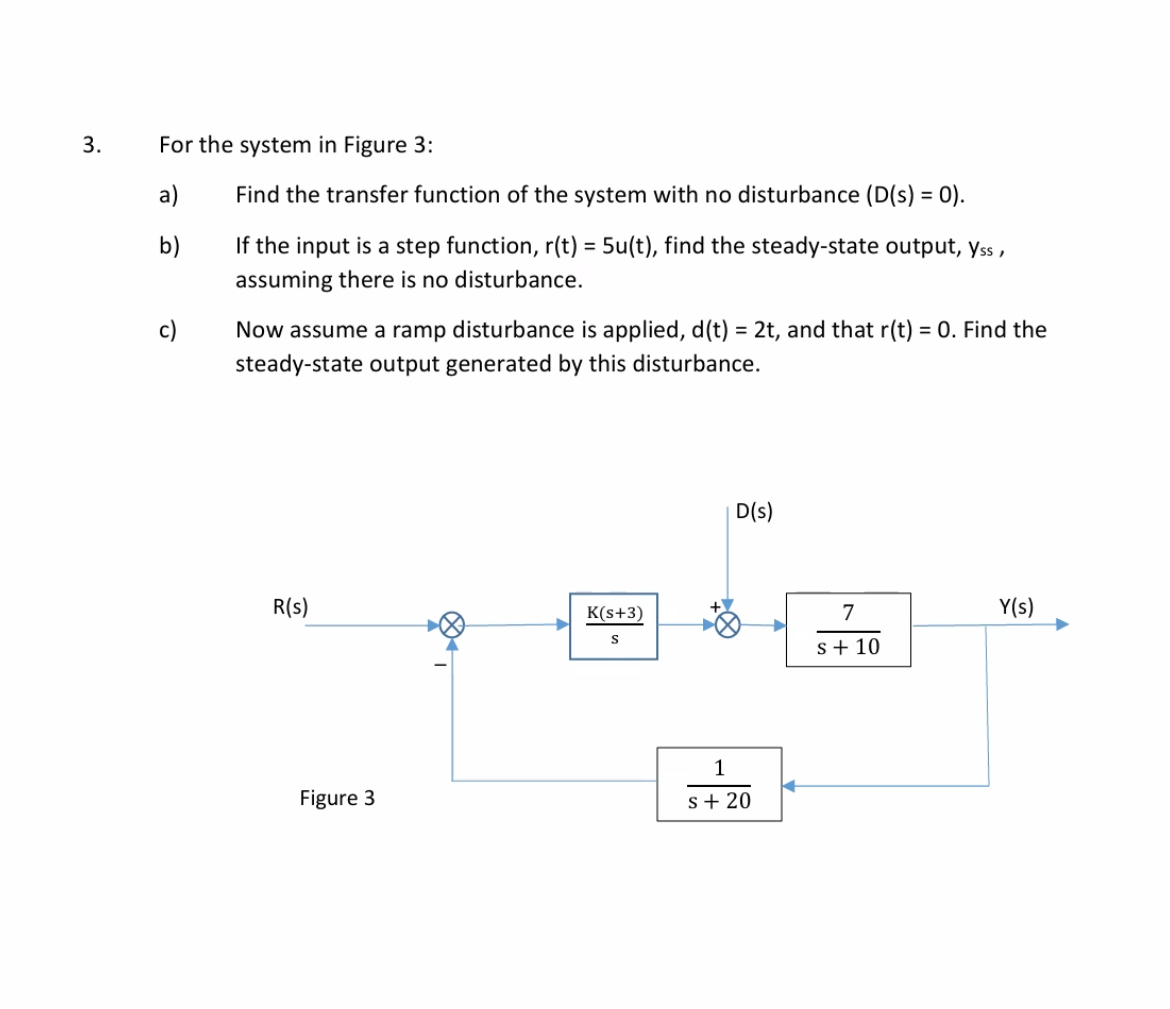

For the system in Figure 3:
a) Find the transfer function of the system with no disturbance
b) If the inpur is a step function, r(t)=5 u(t), find the steady-state output, yss, assuming there is no disturbance.
c) Now assume a ramp disturbance is applied, d(t)=2t, and that r(t)=0. Find the steady-state output generated by this disturbance.
