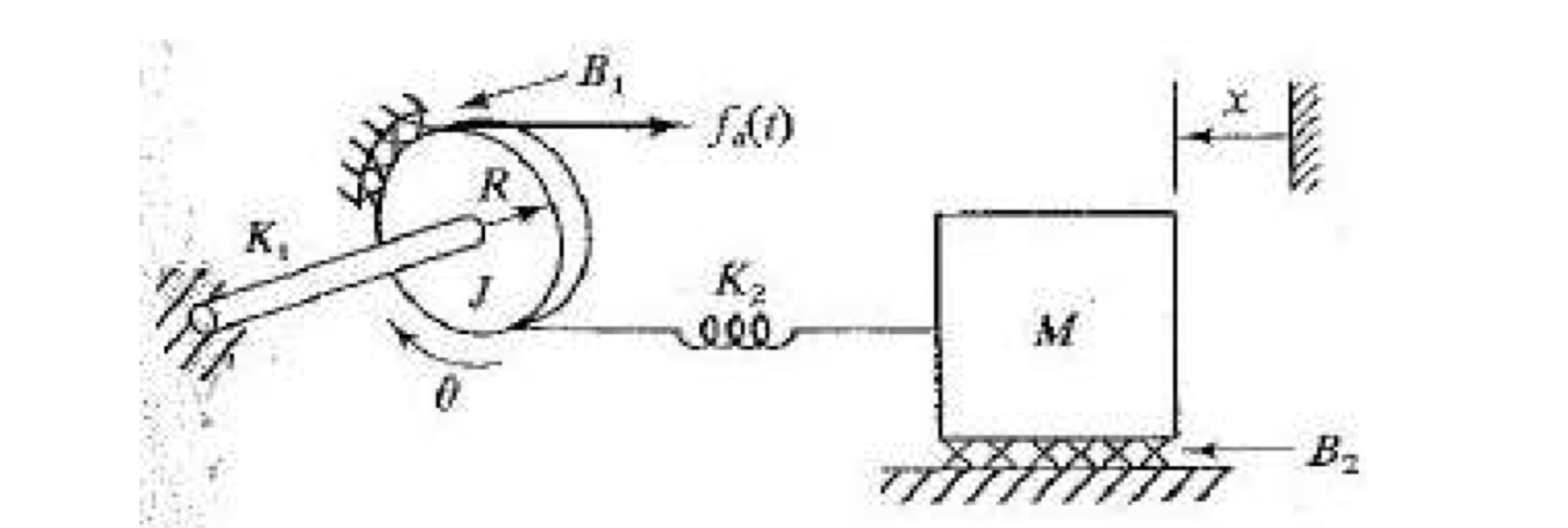

Question: For the system shown below: a . Draw the free body diagram. b . Write the equations of motion for the two bodies in terms

For the system shown below:
a. Draw the free body diagram.
b. Write the equations of motion for the two bodies in terms shown parameters.
For the system shown below: a . Draw the free
