Question: For the U - shaped section in the figure, compute the First Moment of Area, Q , as it would be used in the general

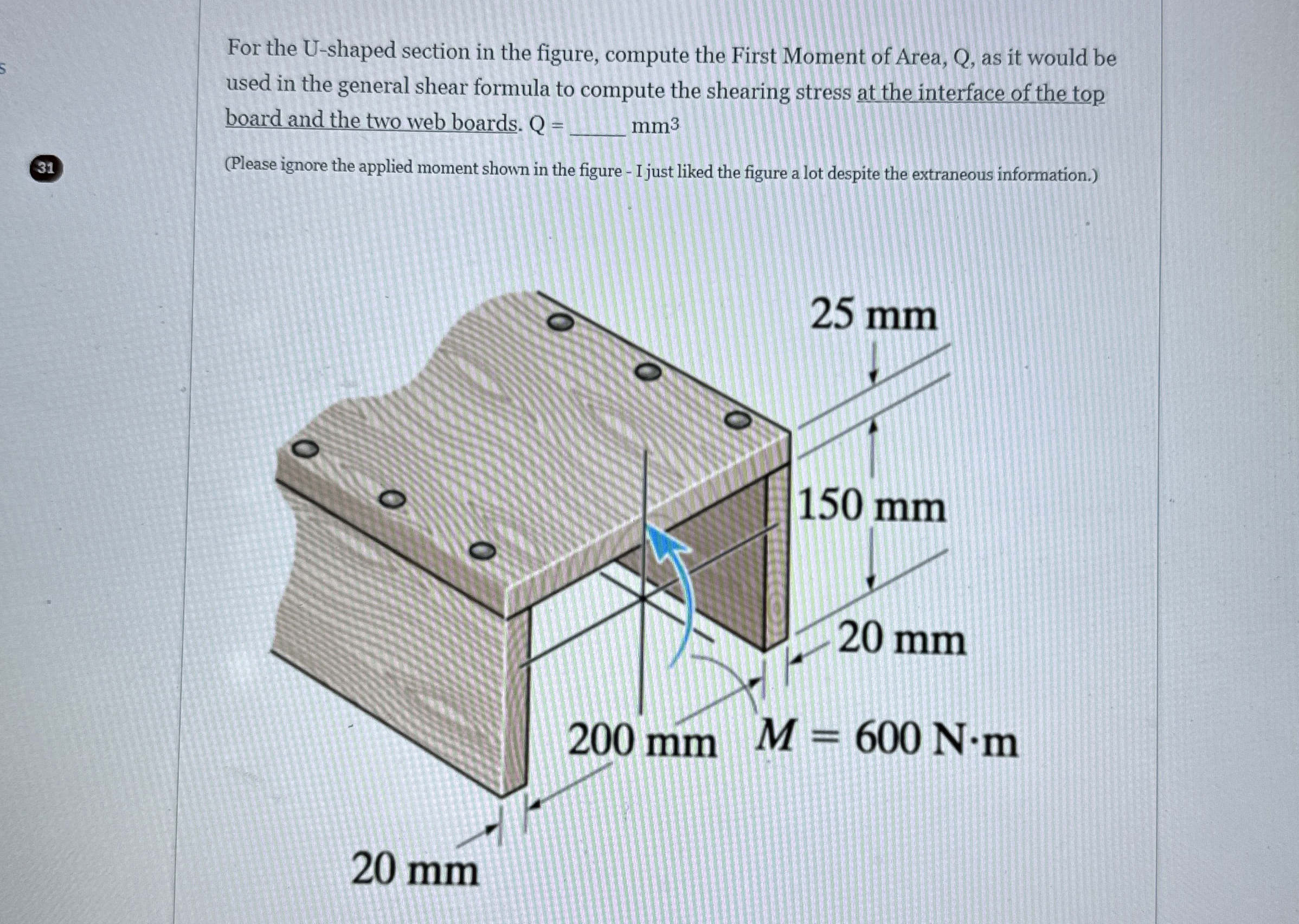

For the U-shaped section in the figure, compute the First Moment of Area, Q, as it would be used in the general shear formula to compute the shearing stress at the interface of the top board and the two web boards. Q=,mm3
31
(Please ignore the applied moment shown in the figure - I just liked the figure a lot despite the extraneous information.)
For the U - shaped section in the figure, compute

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
