For this assignment you are using Microsoft Excel to perform a life cycle cost analysis on system XYZ considering the following factors. System XYZ is installed in an aircraft that will be deployed at four operational bases. Each base will have a maximum force level of $12$ aircraft with the bases being activated in series $($base $1$ at the end of year $3$ for operation in year $4,$ base $2$ at the end of year $4$ for operation in year $5,$ base $3$ at the end of year $5$ for operation in year $6,$ and base $4$ at the end of year $6$ for operation in year $7).$ The total number of system XYZ$$s in operation are as shown in the table below. $($Note$,$ that there is a decline in the number of units required beginning in year $8).$ Also, note over production in year $7$ as some XYZ systems are kept at the Depot as spare units to put in operation when needed.

Year Number

$12345678910$

$00010204060553525$

System XYZ is a newly designed configuration packaged in three units $($Unit A$,$ Unit B$.$ and Unit C$).$ The specified requirements for each of the units are shown in the Figure below. The only system level maintenance that is required is configuration of unit B following a corrective maintenance action of this unit. The configuration takes $15$ minutes to complete.

The average System XYZ utilization is $4$ hours per day, $365$ days per year. One of the aircraft crew members will be assigned to operate several different systems throughout flight, and it is assumed that $10\%$ of the crew member's time is allocated to System XYZ$.$

Relative to the maintenance concept, System XYZ incorporates a built$-$in self$-$test that enables rapid system checkout and fault isolation to the unit level. No external support equipment is required at the aircraft. In the event of a no$-$go condition, the fault is isolated to the unit, and the applicable unit is removed, replaced with a spare, and the damaged unit is sent to the intermediate$-$level maintenance shop $($located at the operational base$)$ for repair. The corrective maintenance time for each unit includes the remove and replace action as well as repair of the unit to restore it to operation. This unit repair is accomplished by identifying modules within the unit that are damaged and replacing the modules to restore the unit to operation. Therefore, the corrective maintenance involves removal and replacement of the unit and the module replacement, below the unit level, to restore the unit to operation. The restored unit is placed back into inventory for use as spares. The replaced $/$ damaged modules, below the unit level, are discarded.

Scheduled $($preventive$)$ maintenance is accomplished on Unit A in the intermediate shop every $6$ months. No depot maintenance is required; however, the depot does provide backup supply and support functions as required.

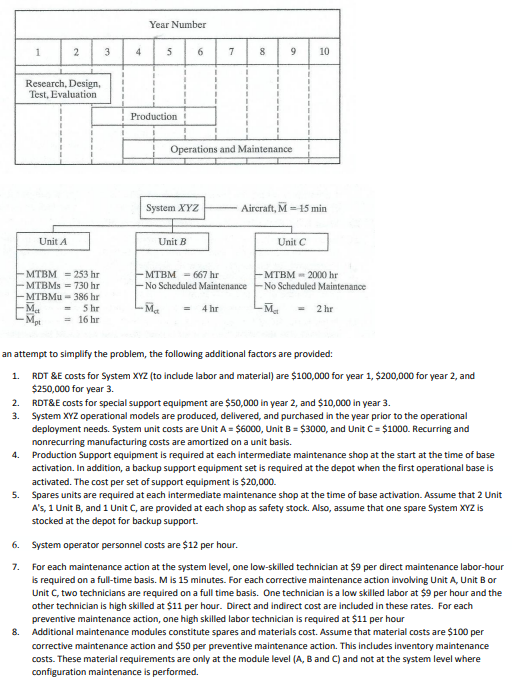

The requirements for system XYZ dictate the program profile shown in the figure on the next page. Assume that the life cycle cost are broken down into three categories represented by blocks in the program profile.

Provide a solution to this this life cycle analysis using the attached template. In essence provide cost for each of the $10$ years of operation in each of the categories summarized above and numbered as follows:

RDT & E COST:

$1.$ System XYZ RDT&E sub total cost

$2.$ System XYZ RDT&E support equipment sub total cost

Production Cost:

$3.$ Production & Manufacturing cost for unit A$,$ B and C

$4.$ Production Support Equipment

$5.$ Spare Units

Operations & Maintenance

$6.$ System Operation Cost

$7.$ Maintenance Labor Cost

$8.$ Maintenance Material & Spares Cost

Calculate these costs based on the criteria number $1$ through $8$ and defined in the problem. Show all work on subsequent worksheets to substantiate cost calculations. Also, for total cost, calculate net present values at $10\%$ discount rate assuming year $1$ is time $0.$ Calculate each individual year NPV value as well as total value and incorporate onto the spreadsheet template. Additional factors and figures are included in screenshot. Please use the following solution table: Year

Cost Category $12345678910$ Total

$1.$ System XYZ RDT&E Sub Total

$2.$ RDT&E Support Equipment Sub Total

Sub Total RDT&E

$3.$ System XYZ Production Subtotal

$4.$ Production Support Equipment Subtotal

$5.$ Spare Units Sub Total

Sub Total Production

$6.$ Total Operating Cost Sub Total

$7.$ Total System Level Maintenance Cost Sub Total

$8.$ Total Mainteance Material Cost

Sub Total Operations & Maintenance

Totals

Totals @ $10\%$ Discount
