For this assignment, you$$ll need to hook up the pulse clock to a circuit such that the output lamps repeatedly count down from $111$ to $000$ in binary. Upon reaching $000,$ they$$ll return to $111.$ Please note that this particular assignment is based on our lecture discussions of JK flip$-$flops, registers, and countdown clock. Note that the clock does not need to begin at $111$ when initially turned on$,$ it simply needs to repeatedly count down.

Please make sure to submit several clear images ofInput Controls

Toggle Switch

Clock

$0$

Low Constant

Output Controls

Flip$-$Flops

SR Flip$-$Flop

D Flip$-$Flop

JK Flip$-$Flop

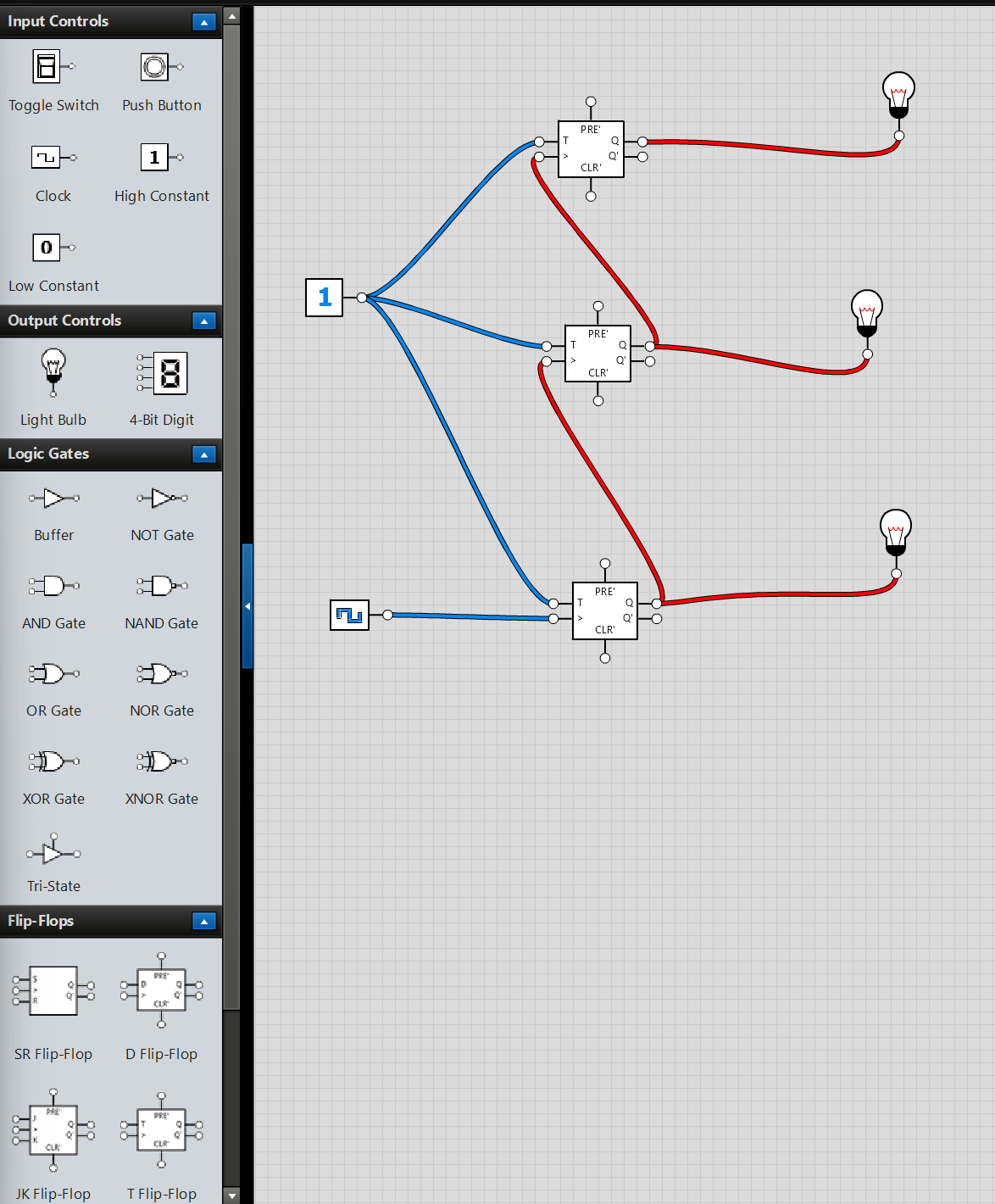

T Flip$-$Flop your circuit, as well as several smaller images of the clock$$s display changing $($you need not show every single possible variation$).$ Finally, remember that your FIRST flip$-$flop in the chain, will create the LSB of your clock, and the FINAL flip$-$flop in your chain will create the MSB$.$ I've attached a picture of the logic.ly set up$,$ you can use anything on the left side to add it to this, please refer to the bottom t flip flop at t$1$ and same thing with the light bulb B$0,$ please help me
