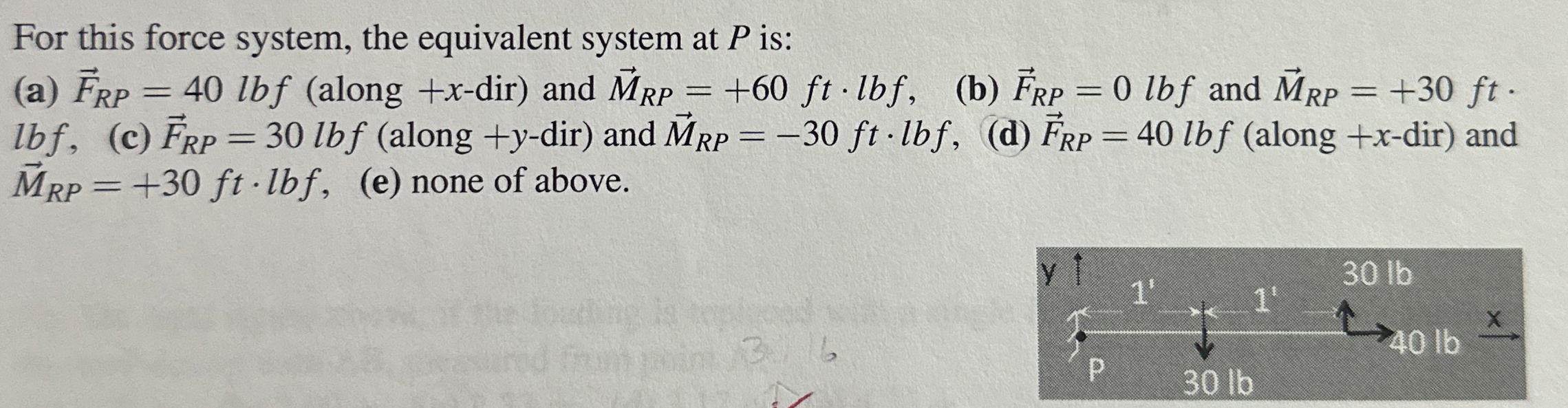

Question: For this force system, the equivalent system at P is: ( a ) vec ( F ) R P = 4 0 l b f

For this force system, the equivalent system at P is:
(a) vec(F)RP=40lbf(along +x-dir) and vec(M)RP=+60ft*lbf,
(b) vec(F)RP=0 lbf and vec(M)RP=+30ft. lbf,(c) vec(F)RP=30lbf(along +y-dir) and vec(M)RP=-30ft*lbf,
(d) vec(F)RP=40lbf(along +x-dir) and vec(M)RP=+30ft*lbf,
(e) none of above.
For this force system, the equivalent system at P

Step by Step Solution
