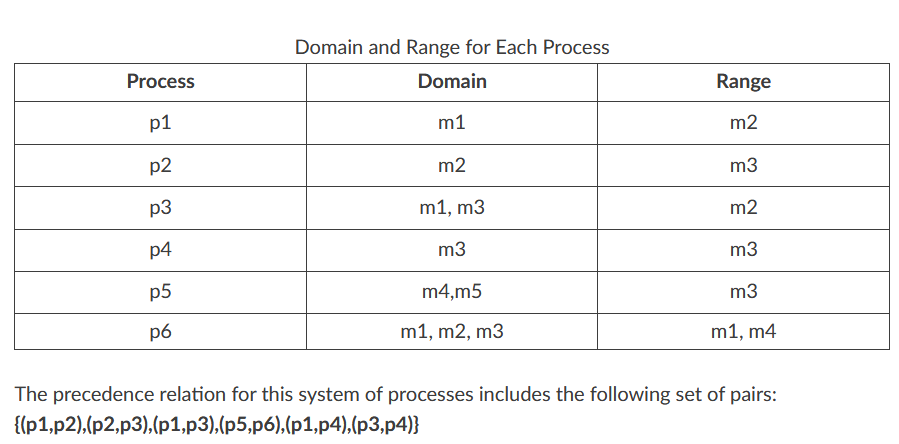

For this problem, you will be working with a system of 6 processes, P = {p1,p2,...,p6} and a set of 5 memory cells M = {m1, m2, ..., m5}. The domain and range for each process is given in the table below:

Provide psuedocode for each of the six processes to use semaphores to enforce the precedence relation provided above. The body of each process does not matter, and you may represent each process as p# and [body of p#] in pseudo code. For example:

p1:

[body of p1]

Domain and Range for Each Process Domain Process Range p1 m1 m2 p2 m2 m3 p3 m1, m3 m2 p4 m3 m3 p5 m4,m5 m3 p6 m1, m2, m3 m1, m4 The precedence relation for this system of processes includes the following set of pairs: {(p1,p2),(p2,p3),(p1,p3),(p5.p6),(p1,p4),(p3,p4)} Domain and Range for Each Process Domain Process Range p1 m1 m2 p2 m2 m3 p3 m1, m3 m2 p4 m3 m3 p5 m4,m5 m3 p6 m1, m2, m3 m1, m4 The precedence relation for this system of processes includes the following set of pairs: {(p1,p2),(p2,p3),(p1,p3),(p5.p6),(p1,p4),(p3,p4)}
